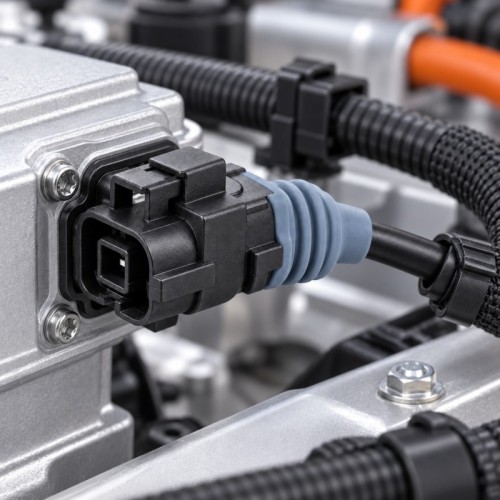

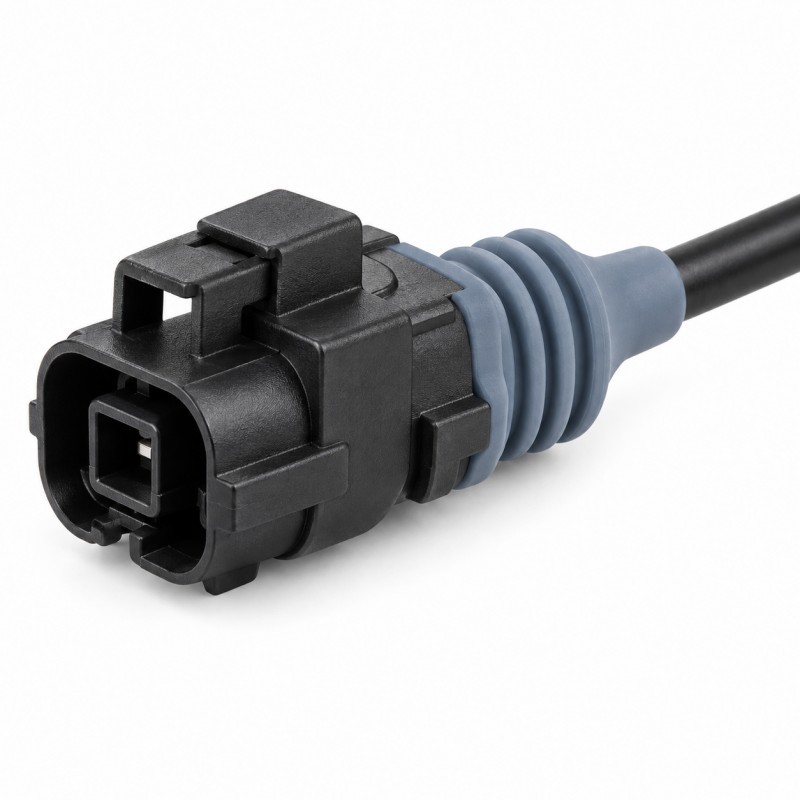

Custom LSR Overmolded Automotive Single Wire Seal | Silicone Connector Wire Seal
Item specifics
- Product Type
- Automotive Single Wire Seal
- Material
- Liquid Silicone Rubber (LSR)
- Process
- LSR Injection Molding / Silicone Overmolding
- Substrate
- Automotive Connector / Wire Harness
- Function
- Waterproof Sealing / Dust Protection
- Structure
- Multi-Lip Silicone Seal
- Application
- EV Connector / Automotive Wire Harness
- Waterproof Rating
- IP67 / IP68
- Service
- OEM / ODM Custom Manufacturing
Review
Description
Product Overview
Custom LSR overmolded automotive single wire seals are designed to provide reliable waterproof and dustproof protection for automotive connector systems.
The single wire seal is manufactured by molding liquid silicone rubber around individual cable wires to create a controlled sealing structure inside connector cavities.
Compared with traditional loose rubber seals, LSR overmolding provides better dimensional stability, consistent sealing performance and improved assembly reliability.
SiliconePlus supports OEM/ODM single wire seal development based on customer drawings, samples and connector requirements.
Why Use an LSR Single Wire Seal
Automotive connectors often require individual wire sealing to prevent moisture, dust and environmental contamination from entering the electrical connection area.
A properly designed silicone single wire seal can provide:
• Waterproof protection
• Dust resistance
• Stable wire positioning
• Vibration resistance
• Long-term sealing reliability
• Improved connector assembly performance
For complete connector sealing solutions, you can also review our custom automotive connector silicone seal products.

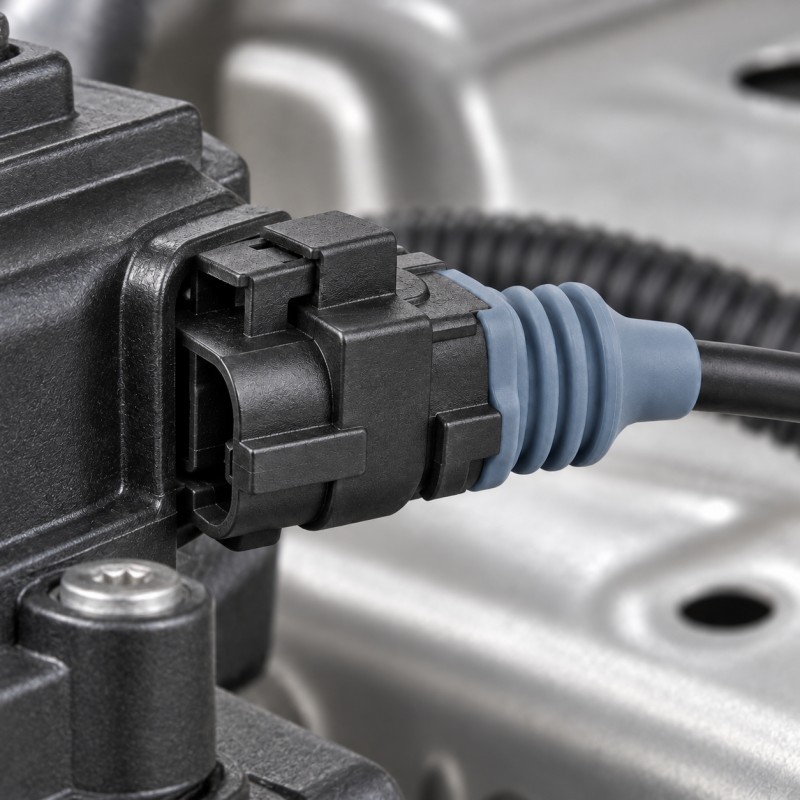

Wire Seal Installation Structure
Single wire sealing structure installed inside automotive connector cavities.

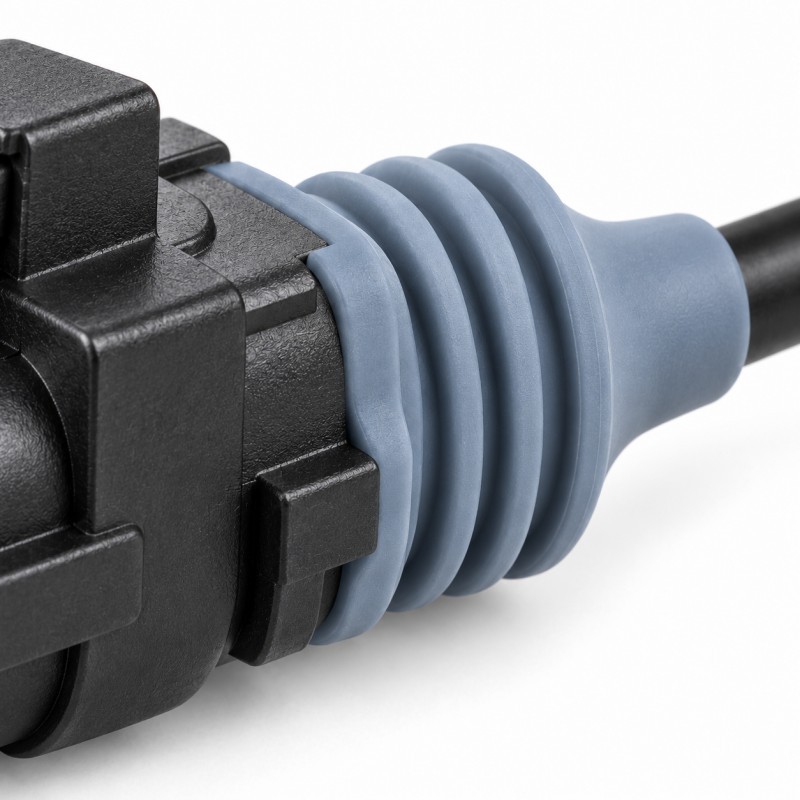

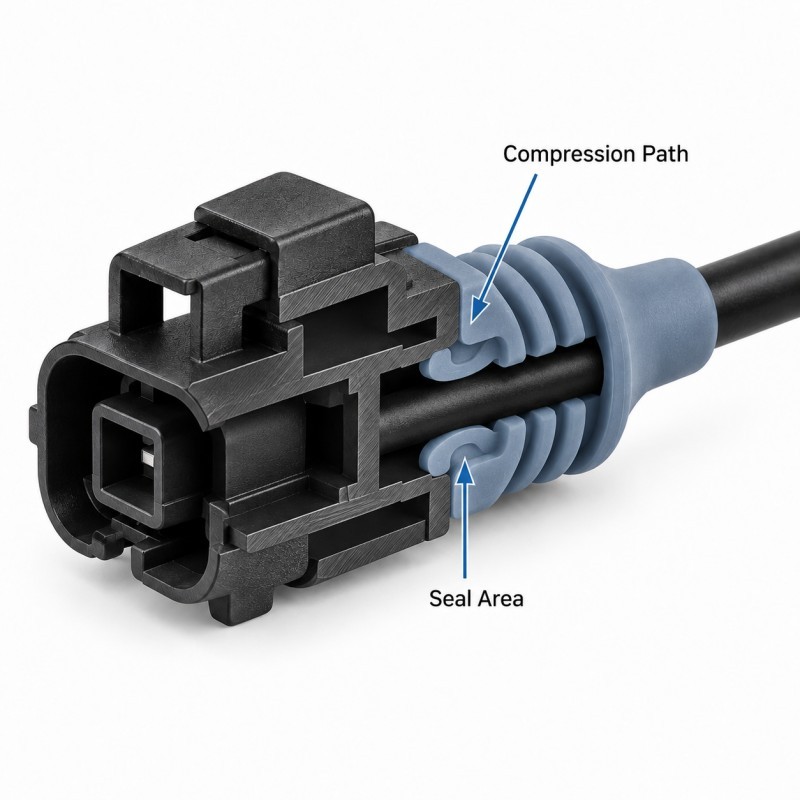

Silicone Multi-Lip Sealing Profile
Close-up view showing silicone sealing ribs and wire protection structure.
Material and Structure
Automotive single wire seals are typically produced using liquid silicone rubber with customized sealing geometry.
The silicone structure can include:
• Multi-lip sealing rings
• Wire retention area
• Connector cavity sealing
• Compression sealing profile
• Custom hardness selection
• OEM dimensional requirements
The sealing design should consider wire diameter, connector tolerance, compression ratio and final assembly conditions.
Applications and Customization
Custom LSR single wire seals are widely used in:
• EV connectors
• Automotive wire harness systems
• Battery management systems
• Sensors
• Electronic control modules
• Industrial electrical connectors
Customization options include wire diameter, silicone hardness, sealing lip design, color and production requirements.
For other automotive silicone overmolding solutions, explore our automotive silicone overmolding products.
Custom automotive connector silicone seal for waterproof wire harness and EV connector applications with OEM/ODM molding support.
Custom automotive connector peripheral seal with LSR housing gasket for IP67/IP68 waterproof connectors and OEM custom manufacturing.

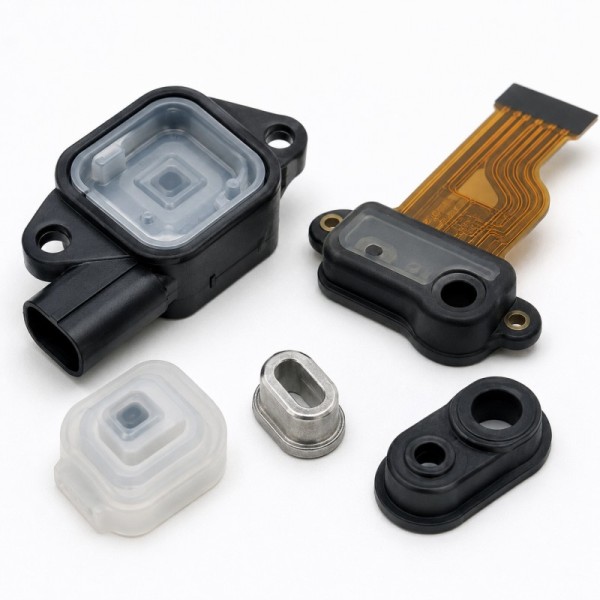

Custom LSR overmolded sensor sealing components for automotive, electronic, wearable and industrial sensor applications. OEM/ODM factory, MOQ 500 pcs.
Start Your Project
To request a quotation, please send us your connector drawing, wire specification, sealing requirement and estimated order quantity.
