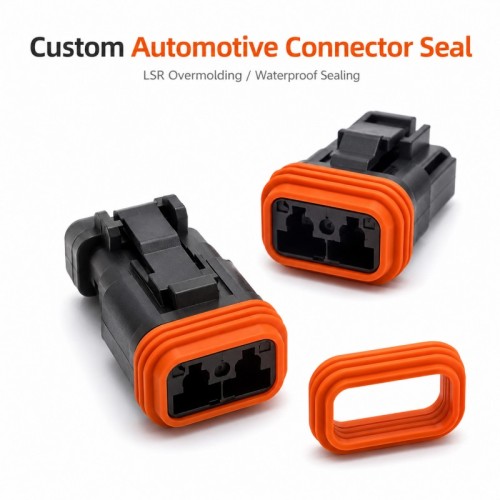

SiliconePlus manufactures custom automotive connector silicone seals for wire harness connectors, EV connectors, automotive electronics, sensor connectors, and industrial electrical connectionsystems. These silicone sealing components are designed to improve waterproof sealing, dustproof protection, vibration resistance, aging resistance, and assembly reliability.

This page focuses on the silicone sealing component only. Connector housings shown in images are for application reference. SiliconePlus can customize the silicone seal, gasket, sealing ring, or connector sealing frame according to customer drawings, samples, material requirements, hardness requirements, and testing standards.

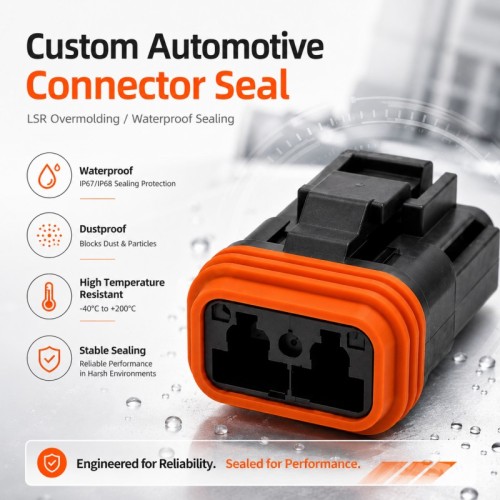

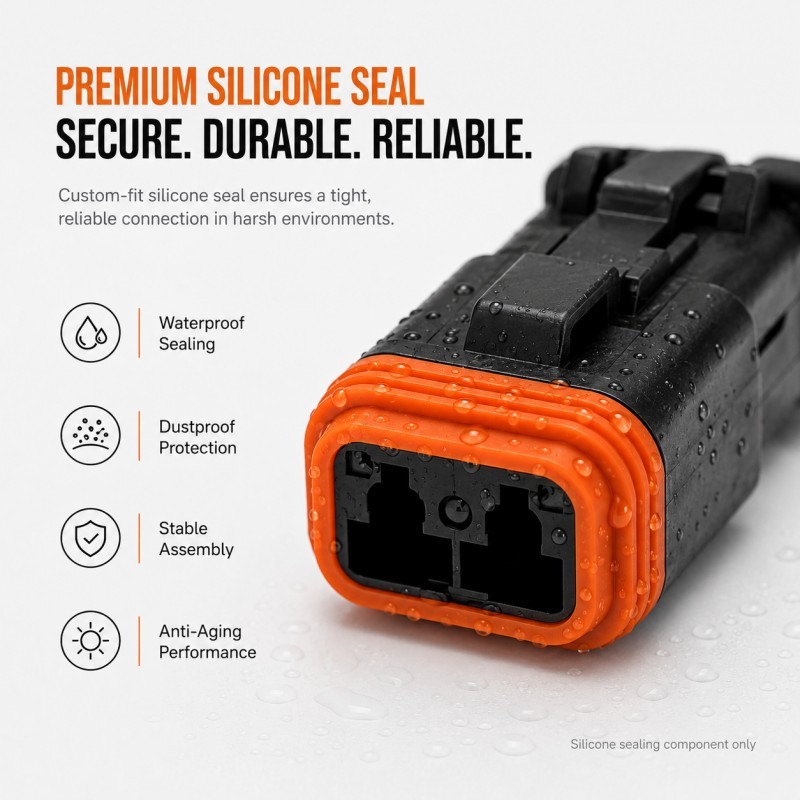

Waterproof Sealing for Automotive Connectors

Automotive connectors are often exposed to moisture, dust, temperature changes, vibration, and long-term outdoor environments. A well-designed silicone seal can help protect the connector interface and reduce the risk of water ingress, dust contamination, poor contact, and assembly failure.

The sealing structure can be customized for different connector housings, wire harness systems, EV connectors, charging interfaces, and automotive electronic modules. IP67 or IP68 sealing performance can be customized according to the final connector structure and testing requirements.

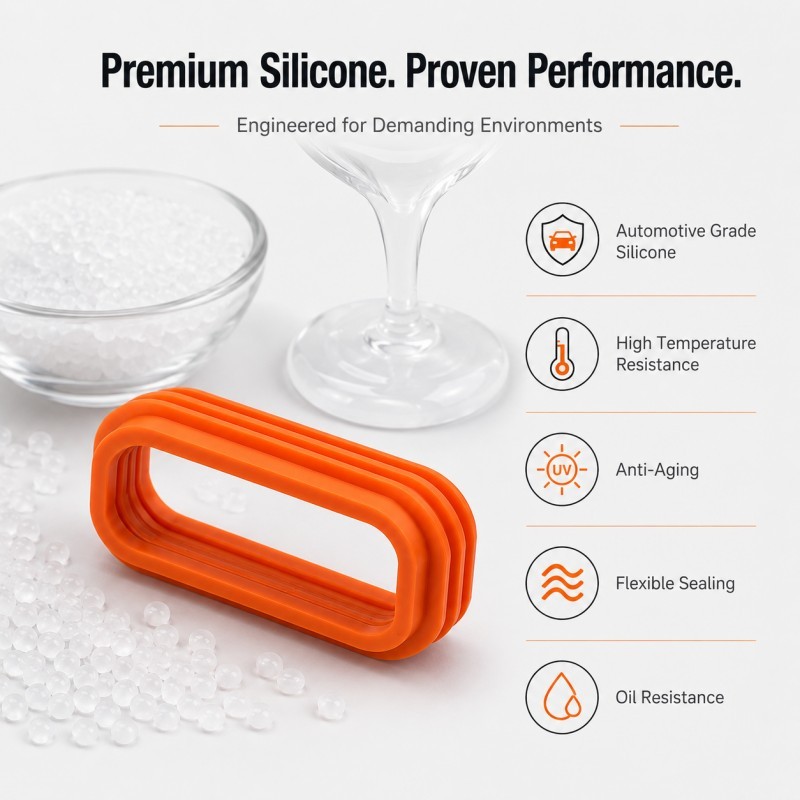

Silicone Material for Automotive Sealing Parts

Silicone rubber is widely used for automotive sealing parts because of its flexibility, compression recovery, temperature resistance, aging resistance, and stable sealing performance. For connector sealing applications, material hardness, compression ratio, groove design, sealing lip shape, and dimensional tolerance all affect the final sealing result.

SiliconePlus can support different silicone material options according to the customer’s application environment, including high and low temperature conditions, vibration requirements, assembly pressure, and long-term durability needs.

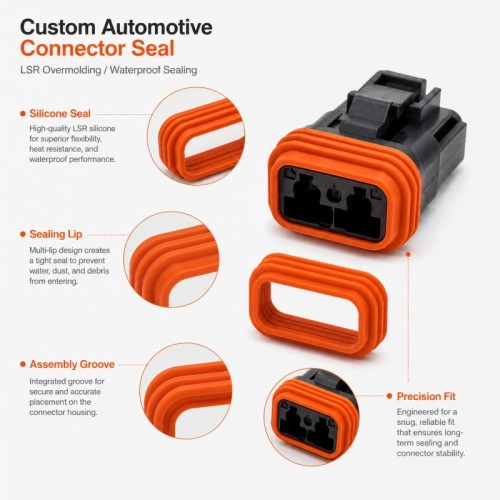

Precision Molded Connector Seal Details

The performance of an automotive connector silicone seal depends on accurate mold design, stable material flow, clean parting line control, consistent compression height, and precise fit with the connector groove. Small dimensional deviations may affect assembly force and sealing reliability.

SiliconePlus provides DFM review, mold development, sample testing, and mass production support for custom connector silicone seals. We can manufacture silicone seals based on 2D drawings, 3D CAD files, existing connector housings, or physical samples.

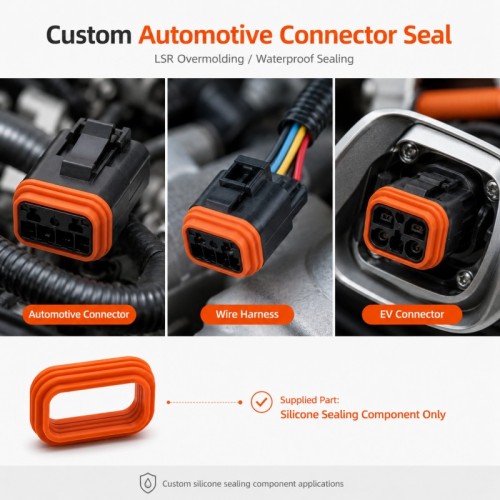

Applications in EV Connectors and Wire Harness Systems

Custom automotive connector silicone seals are suitable for:

• EV connector sealing
• Wire harness connector sealing
• Automotive sensor connector sealing
• Battery pack connector sealing
• Charging interface sealing
• Automotive electronic module sealing
• Industrial electrical connector sealing

SiliconePlus supplies silicone sealing components and custom molding services only. Complete connector assemblies shown in images are for application reference.

Custom Options

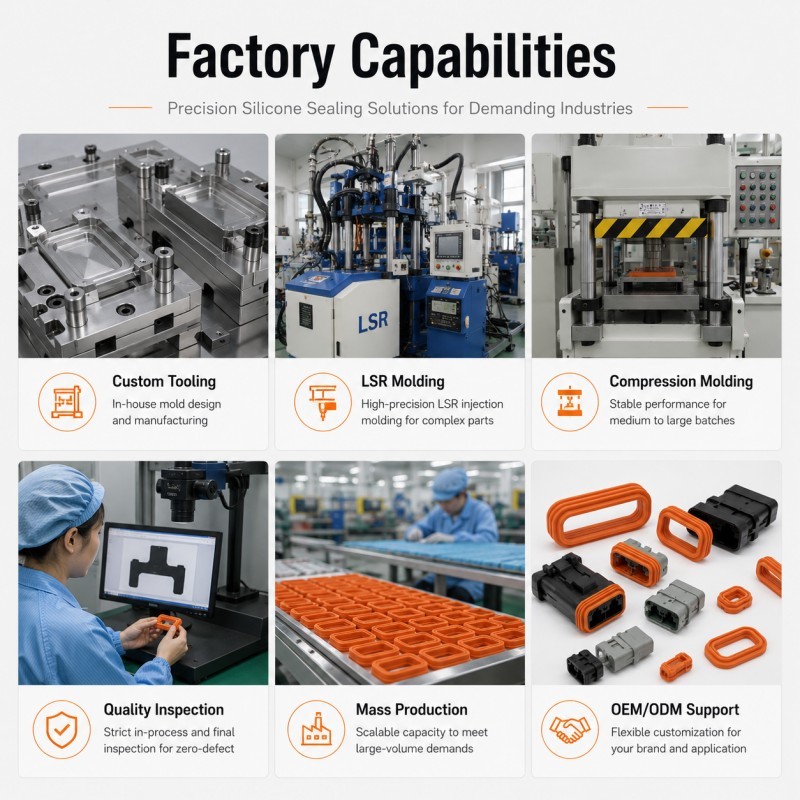

OEM/ODM Silicone Seal Manufacturing Support

SiliconePlus provides one-stop custom silicone manufacturing support from project evaluation, material recommendation, DFM review, mold development, sample production, silicone molding, quality inspection, and mass production.

For automotive connector silicone seal projects, our team focuses on sealing structure, material selection, dimensional stability, compression performance, surface quality, and batch consistency. Send us your 2D drawing, 3D CAD file, connector sample, material requirement, hardness requirement, testing standard, and estimated order quantity. SiliconePlus will help evaluate the project and provide a suitable custom silicone sealing solution.
