Custom Silicone Overmolded FPC Cable Component for Medical Devices
Item specifics
- Product Type
- Custom Silicone Overmolded FPC Cable Component
- Material
- Black Silicone + FPC + Wire/Cable + Other Integrated Materials
- Process
- Silicone Overmolding / Silicone Encapsulation
- Substrate
- Flexible Printed Circuit (FPC) / Wire and Cable
- Application
- Medical Device Assembly
- Color
- Black
- Customization
- OEM/ODM Custom Manufacturing
- Drawing
- 2D/3D Drawing or Physical Sample
- Manufacturer
- SiliconePlus
Review
Description

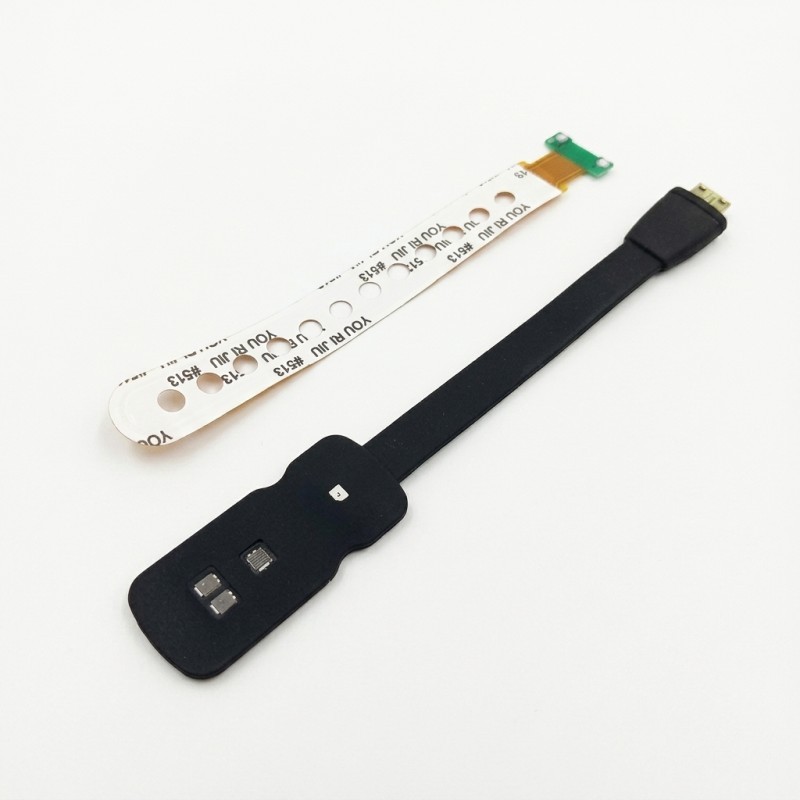

Custom Silicone Overmolded FPC Cable Component for Medical Devices
This custom component combines a black silicone outer structure with flexible circuit and cable elements for medical device assembly applications.

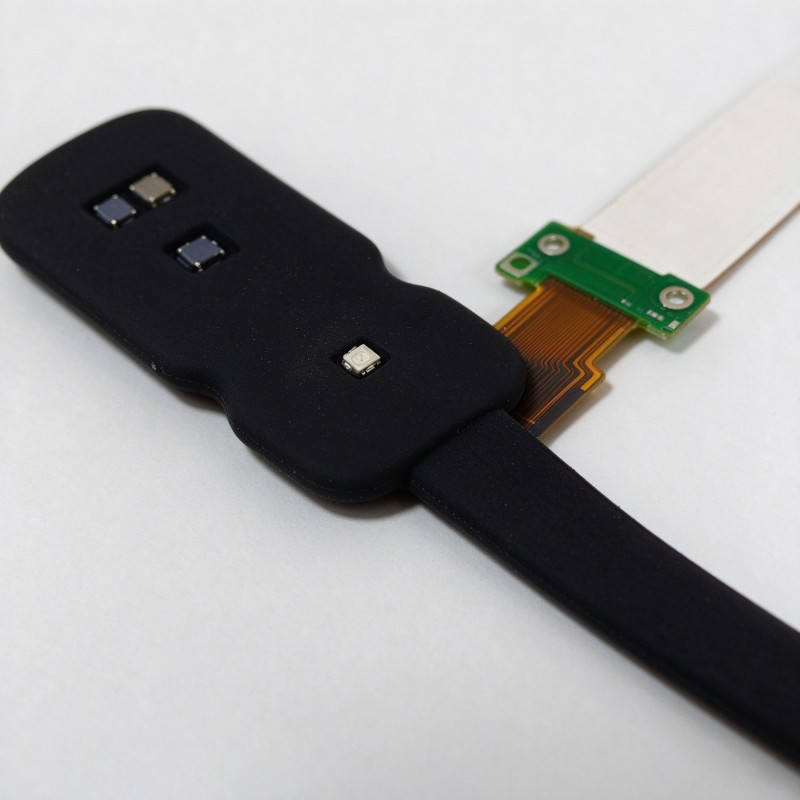

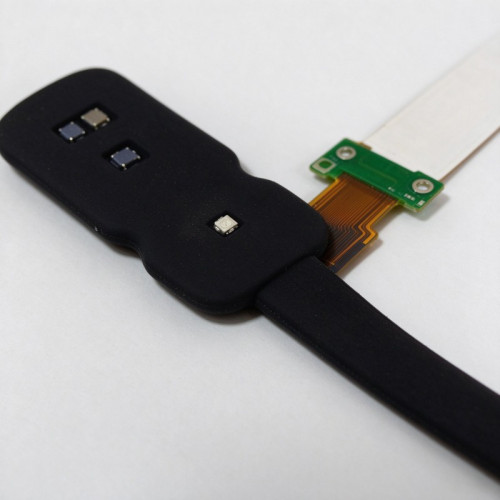

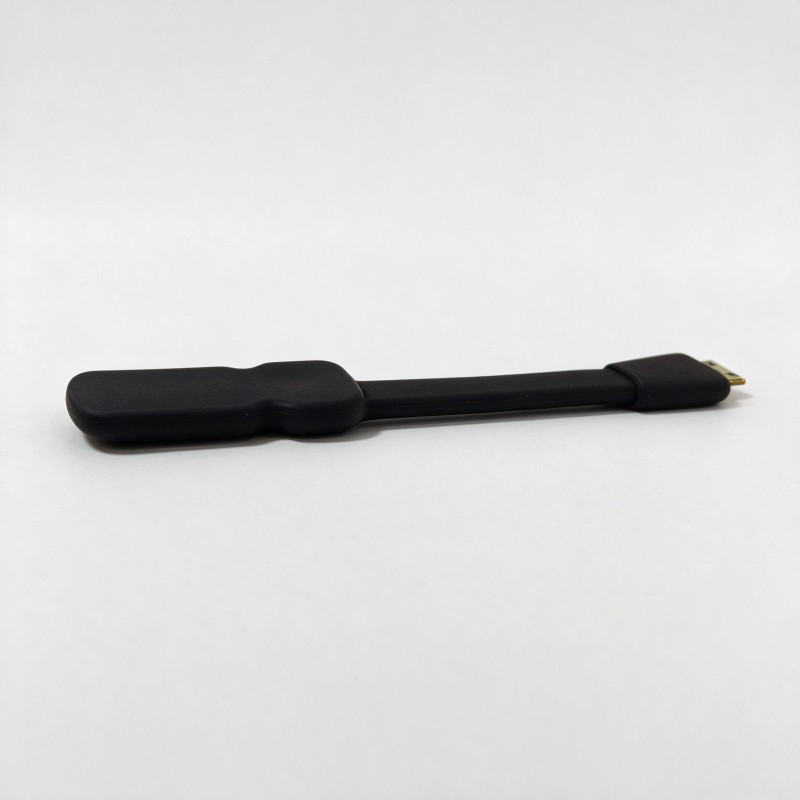

Based on the supplied product sample, the component features an elongated form with a locally enlarged silicone section and integrated electronic connection elements.
Silicone overmolding can be developed around FPC and wire/cable structures according to the customer's approved drawings, samples and manufacturing requirements.
SiliconePlus supports OEM/ODM custom manufacturing for silicone overmolded components used in medical device assemblies. The final product structure, material grade and manufacturing process are defined according to the confirmed project specifications.
Silicone Overmolding Structure

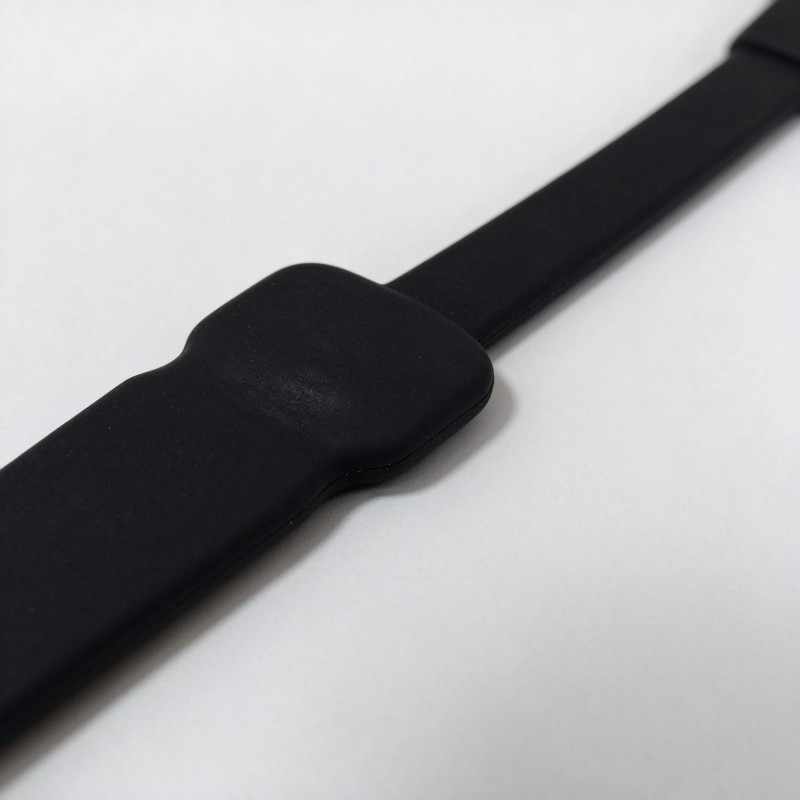

The black silicone outer structure is developed according to the component's required geometry and assembly conditions.
The silicone coverage area, outer shape and exposed interfaces can be customized based on approved product drawings or samples.
FPC and Cable Integration
FPC positioning and cable routing are important considerations for silicone overmolded electronic components.
The required connection areas, cable exit positions and exposed electrical interfaces should be defined before tooling and molding, according to the final product design.
Design Considerations for Medical Device Overmolding
For silicone overmolded FPC and cable components, the manufacturing design should consider:
- FPC positioning during molding
- Silicone coverage and outer geometry
- Cable routing and exit location
- Required exposed connection areas
- Mold positioning and demolding feasibility
- Compatibility between silicone and the integrated materials
These design considerations help establish a practical manufacturing approach for the customer's specific component.
The final molding process, material grade and inspection requirements should be reviewed and confirmed before production.
Custom Silicone Overmolding for Medical Device Components

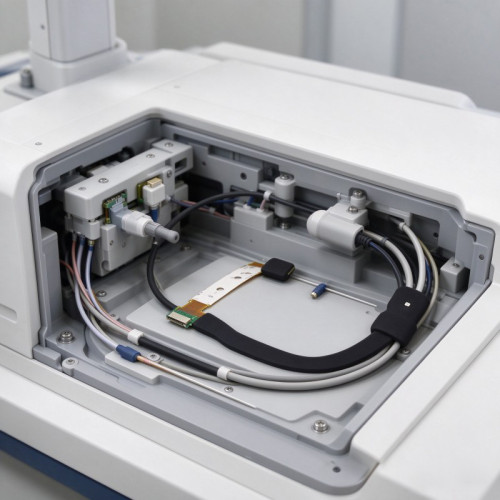

Medical device assemblies may contain flexible circuits, wires, cables and molded silicone structures within a compact component.
Silicone overmolding can be customized to integrate a shaped silicone exterior with selected electronic and connection elements, based on the approved design.
SiliconePlus supports custom silicone overmolding projects involving FPC and other integrated materials.
For more information about our FPC-related manufacturing capabilities, see our FPC with Silicone Overmolding Manufacturing Solutions.
Discuss Your Custom Medical Silicone Overmolding Project
Looking for a manufacturing partner for a custom silicone overmolded FPC or cable component?
Send us your product drawings, samples, material requirements and application details.
SiliconePlus can review your project requirements and discuss the proposed silicone overmolding structure, manufacturing feasibility and quotation.
Contact SiliconePlus to discuss your custom project.
