Custom Silicone-Overmolded FPC LED Strip for Wearable Head-Mounted Visibility Devices
Item specifics
- Product Material
- Silicone + FPC + LED assembly
- Product Process
- Silicone Overmolding / FPC Overmolding
- Product Structure
- Flexible LED/FPC assembly with silicone outer encapsulation
- Product Color
- Black silicone exterior; visible yellow LED/FPC area in the supplied photo
- Application
- Wearable head-mounted visibility devices
- Customization
- OEM/ODM customization based on drawings or samples
- Product Type
- Custom silicone overmolded electronic component
Review
Description

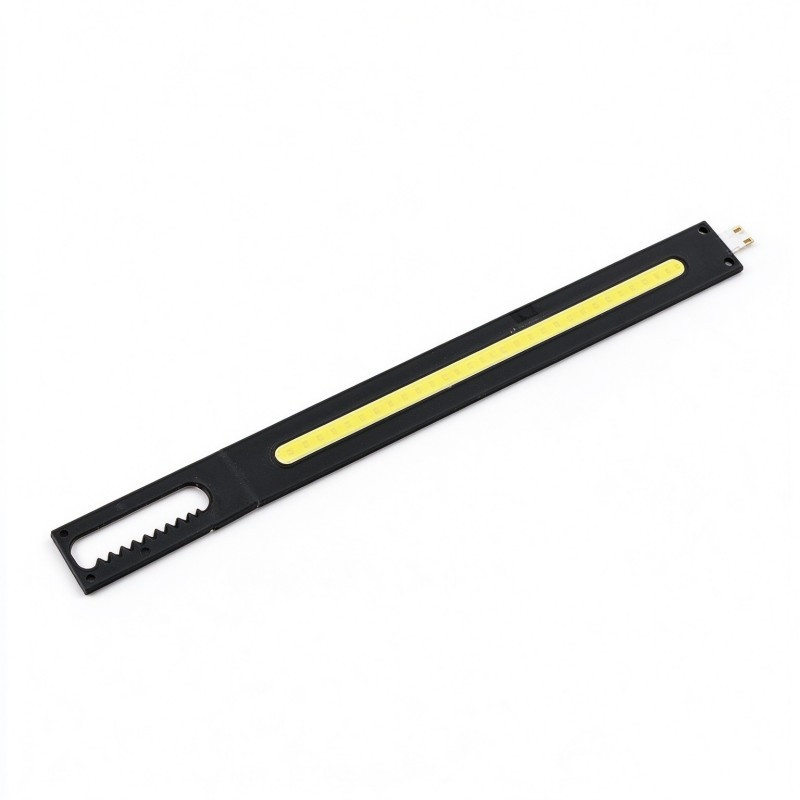

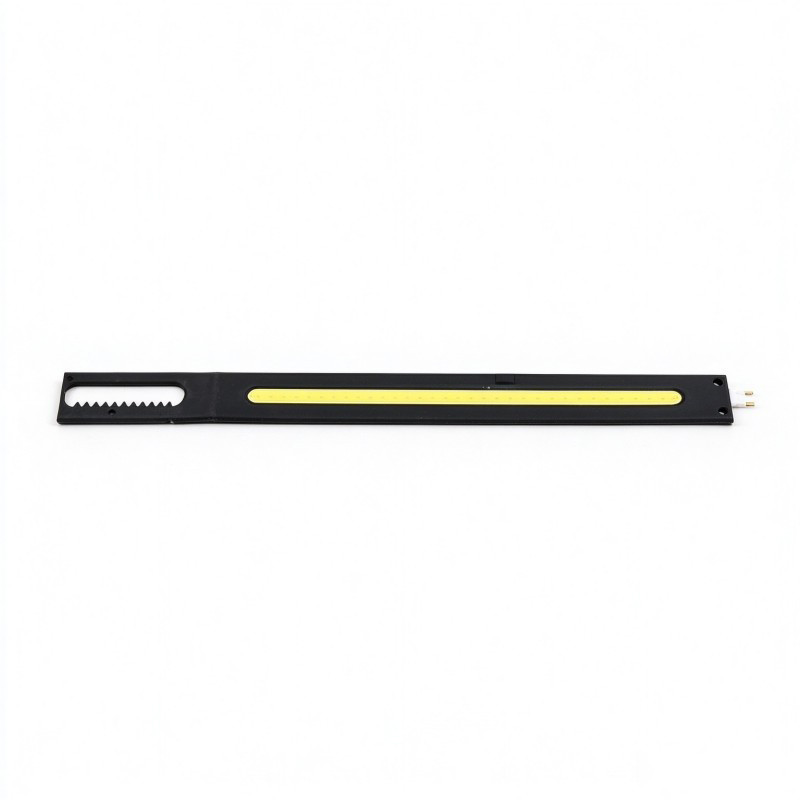

Custom Silicone-Overmolded FPC LED Strip
This custom component combines a flexible LED/FPC assembly with a black silicone outer structure. Based on the supplied product sample, the elongated design is intended for a wearable head-mounted visibility application in low-light environments.
Silicone overmolding can be customized around flexible electronic assemblies according to the required shape, circuit layout, cable routing and exposed connection areas. Final construction and process feasibility should be confirmed against the customer's drawings, samples and electrical requirements.

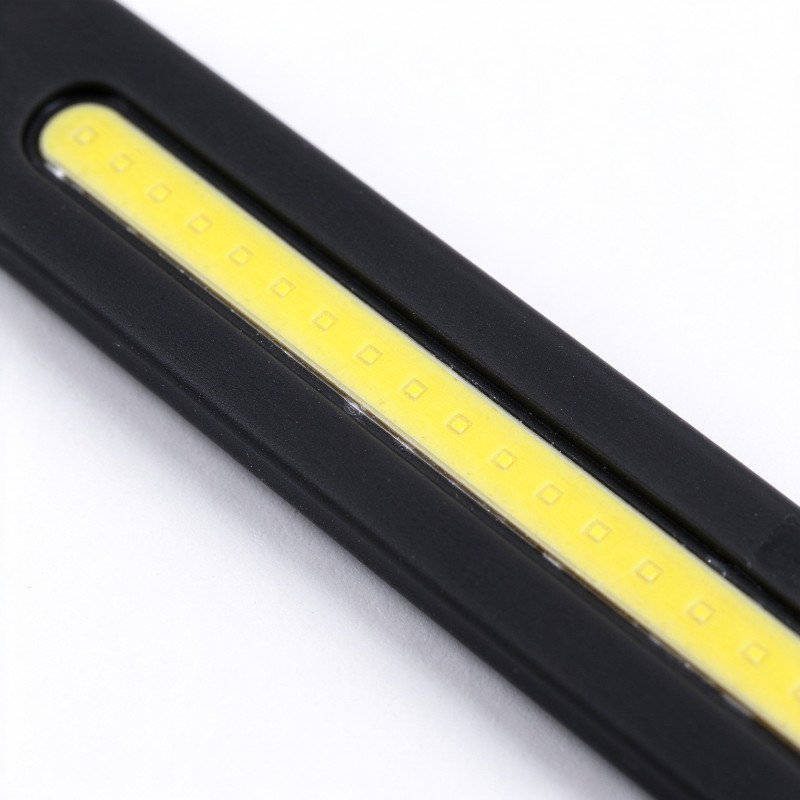

Silicone Encapsulation Around the Flexible LED Assembly
The black silicone outer structure forms the visible exterior of this elongated flexible LED assembly. The encapsulation geometry, coverage area and exposed light-emitting region should be defined according to the actual product design and manufacturing requirements.

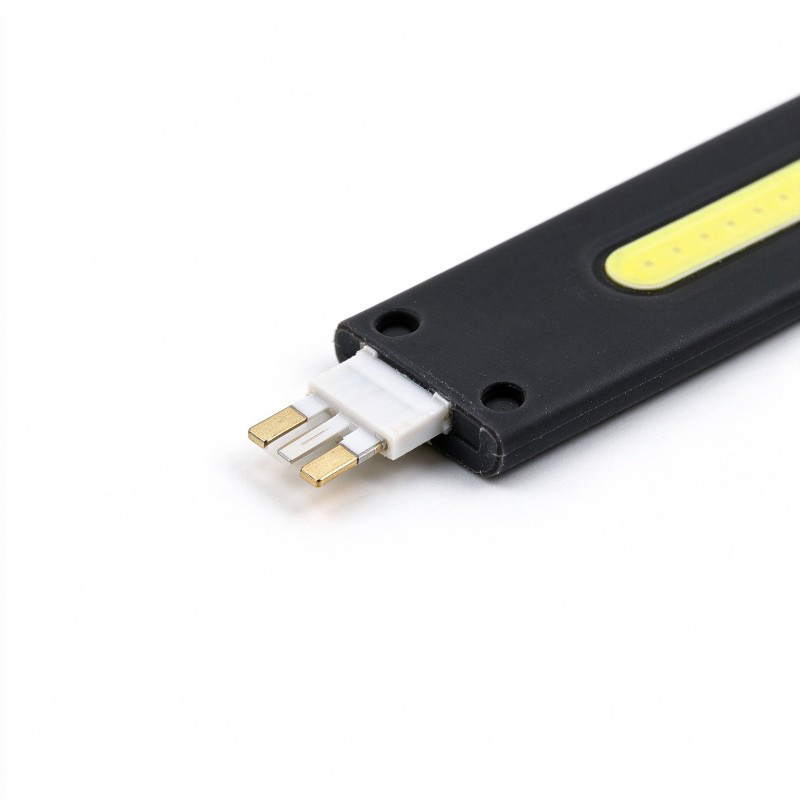

FPC and Cable Connection Design
Flexible circuit routing and cable exit geometry are important considerations for custom electronic overmolding. Connection areas must remain accessible where required, and the final interface should follow the customer's approved drawings or physical sample.
Design Considerations for Flexible Silicone Overmolding
For flexible LED/FPC assemblies, silicone overmolding design should consider the required bending zones, silicone coverage, cable exit, exposed electrical contacts and the position of light-emitting elements.
The molding design must avoid interfering with electrical connections or blocking the intended light-emitting area. Silicone material, bonding method and molding conditions should be selected after reviewing the FPC construction and assembly requirements.
SiliconePlus supports custom silicone overmolding projects based on drawings, samples and technical specifications.
Custom FPC Silicone Overmolding for Wearable Electronics
Wearable electronic assemblies often require a combination of flexible circuitry, cable connections and a shaped external enclosure. Silicone overmolding can integrate a soft outer structure with selected areas of an FPC assembly, depending on the product design and process feasibility.
Potential design considerations include:
- Flexible circuit positioning and protection
- Silicone coverage around the electronic assembly
- Cable routing and connection interfaces
- Light-emitting area exposure
- Bending requirements and assembly constraints
For details of our manufacturing approach, see our FPC with Silicone Overmolding Manufacturing Solutions.
Discuss Your Custom Silicone-Overmolded LED Assembly
Looking for a manufacturing partner for a custom silicone-overmolded LED/FPC assembly?
Send us your product drawings, samples, circuit layout and cable interface requirements. Our team can review the proposed silicone encapsulation structure, discuss manufacturing feasibility and provide a quotation based on the confirmed specifications.
Contact SiliconePlus to discuss your project.
