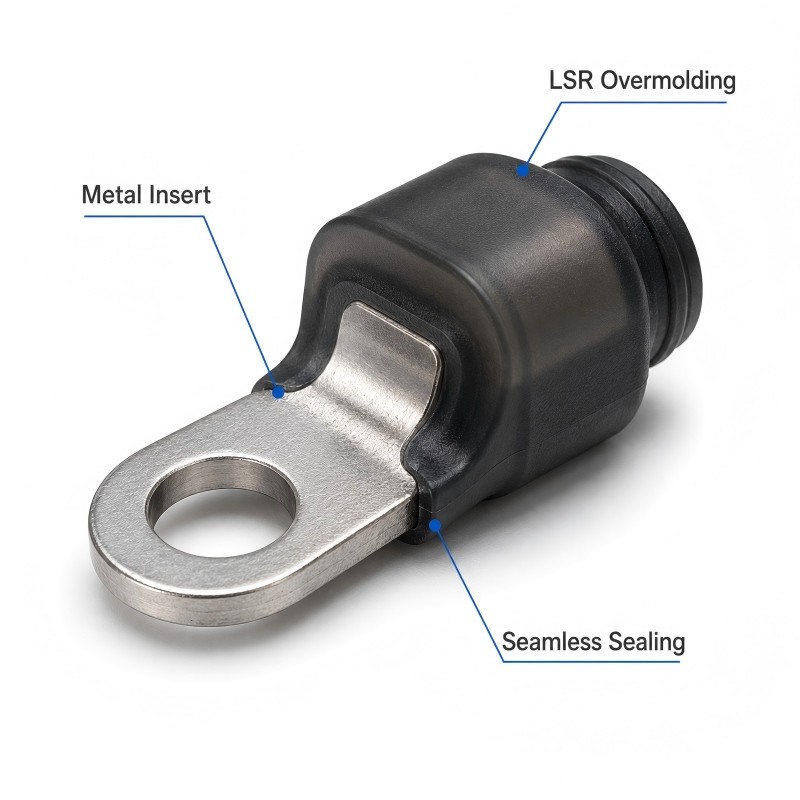

Metal With Silicone OverMolding Manufacturing

Introduction

Many engineers and sourcing teams ask whether metal with silicone overmolding is the right solution for waterproof connectors, medical device components, wearable electronics, beauty devices, or industrial sealing parts. The answer matters because poor bonding between metal and silicone can cause delamination, leakage, unstable assembly, and product failure. This article explains how metal silicone overmolding works and how to choose the right manufacturing partner.

Answer Excerpt

Metal with silicone overmolding manufacturing is a custom process that molds liquid silicone rubber over metal inserts, terminals, frames, or structural parts to create waterproof, insulated, shock-resistant, and durable components. It is widely used for automotive connectors, medical device parts, wearable electronics, beauty devices, sensors, industrial seals, and OEM/ODM projects requiring strong bonding and stable sealing performance.

Transition Paragraph

For B2B buyers, the key question is not only whether silicone can cover metal. It is whether the final part can stay bonded and sealed during real use.

People Also Ask: What Is Metal With Silicone OverMolding Manufacturing?

Metal with silicone overmolding manufacturing is a process that combines metal inserts with silicone rubber through insert molding or liquid silicone overmolding. The metal part is placed into a precision mold, and silicone is molded around selected areas to create sealing, insulation, protection, soft-touch, anti-vibration, or waterproof functions.

Unlike ordinary silicone molding, silicone over metal requires both metal insert control and silicone molding experience. The supplier must consider metal material, surface treatment, insert tolerance, positioning accuracy, bonding area, silicone flow, curing condition, and final assembly environment.

This process is especially useful when a product needs the mechanical strength of metal and the sealing flexibility of silicone at the same time. Metal provides structural support, electrical connection, fixing strength, or mechanical stability, while silicone provides waterproof sealing, insulation, shock absorption, soft touch, anti-slip protection, or environmental resistance.

For Shenzhen Liyongan Silicone Rubber Products Co., Ltd., metal silicone overmolding is part of a broader OEM/ODM custom silicone manufacturing capability, including liquid silicone injection molding, silicone over plastic, FPC silicone overmolding, silicone and silicone overmolding, waterproof silicone seals, medical grade silicone parts, wearable device seals, automotive sealing parts, and industrial silicone rubber components.

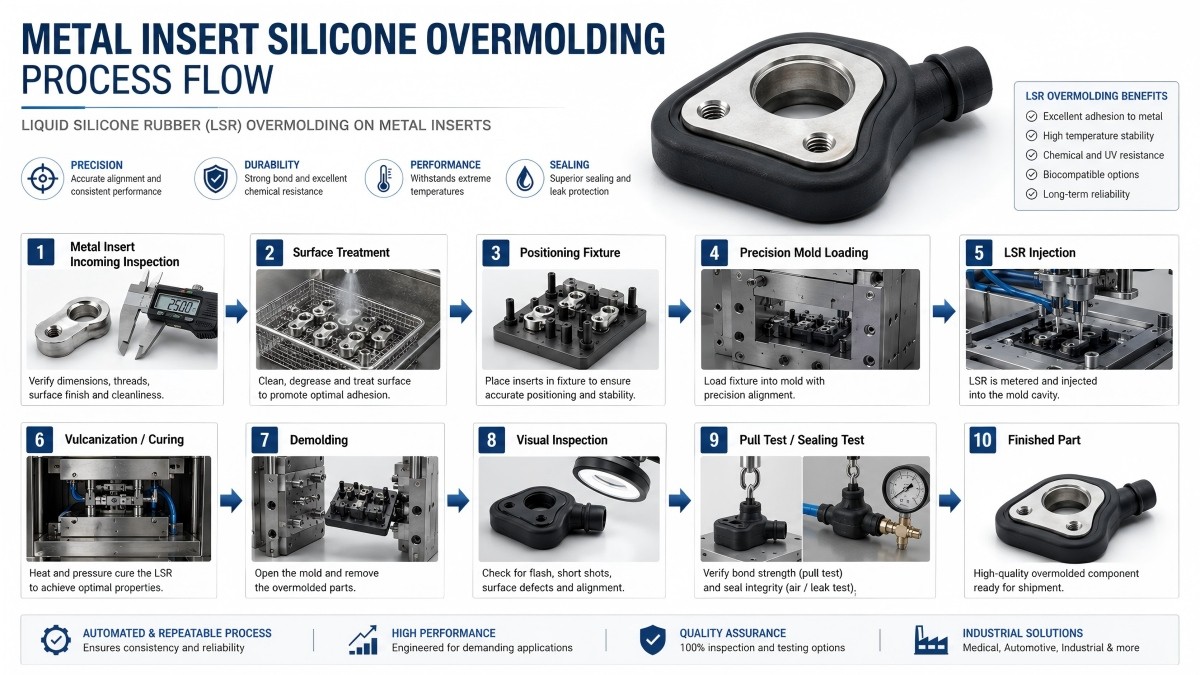

People Also Ask: How Does Metal Silicone Overmolding Work?

The metal silicone overmolding process usually starts with engineering evaluation. Engineers review the metal insert drawing, 3D structure, material type, tolerance, surface finish, bonding area, silicone coverage area, waterproof level, hardness requirement, assembly method, and application environment.

Next, the metal insert is prepared. Depending on the project, metal parts may require cleaning, degreasing, surface roughening, primer, plasma treatment, or other surface preparation methods. This step is important because oil, dust, oxidation, or improper surface condition can reduce bonding between silicone and metal.

After preparation, the metal insert is placed into a precision mold. Insert positioning is critical. If the metal part shifts during molding, the silicone layer may become uneven, the sealing lip may be misaligned, or the final part may not fit the assembly.

Liquid silicone rubber is then injected or molded around selected areas of the metal insert. The silicone cures under controlled heat and pressure, forming a bonded sealing layer, protective cover, soft-touch surface, waterproof edge, vibration-damping structure, or insulation layer.

After demolding, the part is inspected. For metal overmolded silicone parts, inspection may include appearance, flash, bonding condition, dimensions, insert position, sealing edge, pull strength, compression structure, and waterproof performance if required.

People Also Ask: Why Is Silicone Used for Metal Overmolding?

Silicone is widely used for metal overmolding because it combines flexibility, durability, insulation, sealing performance, and environmental resistance. It helps improve the function of metal parts without removing the strength and stability of the metal insert.

The first advantage is waterproof sealing. Metal parts used in connectors, sensors, medical devices, beauty devices, and industrial modules often need protection from water, sweat, dust, oil, or cleaning fluids. Silicone can form a flexible barrier around the metal insert.

The second advantage is insulation. In electronic and electrical applications, metal may conduct electricity, while silicone can provide insulation and separation between conductive areas.

The third advantage is shock absorption. Metal is rigid, but silicone is elastic. Overmolding silicone onto metal can reduce vibration, impact, friction, and assembly stress.

The fourth advantage is touch and safety. In wearable devices, medical handles, beauty devices, and handheld tools, silicone can provide a soft, anti-slip, skin-friendly surface over a hard metal structure.

The fifth advantage is integrated structure. Instead of assembling separate rubber gaskets or applying glue manually, metal silicone overmolding can combine sealing, bonding, insulation, and protection into one molded component.

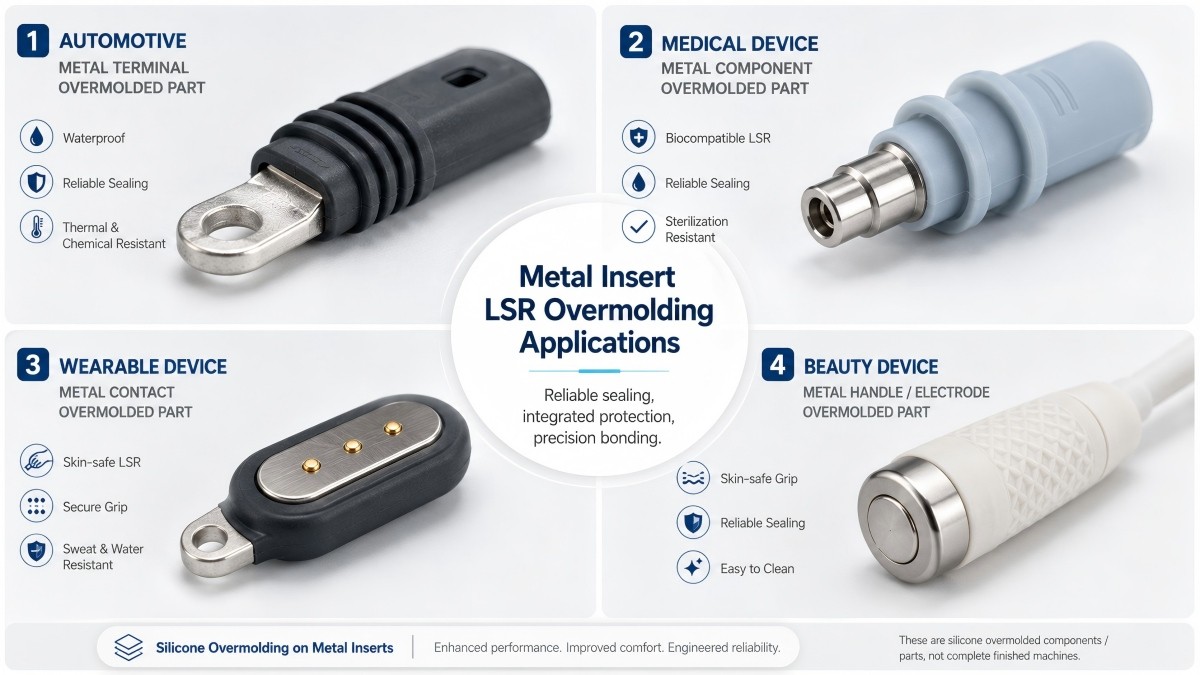

People Also Ask: What Products Use Metal With Silicone Overmolding?

Metal with silicone overmolding is used in products that require strong structure, waterproof sealing, insulation, soft contact, or long-term durability.

In automotive electronics and new energy vehicles, metal silicone overmolding can be used for connector terminals, sensor components, wire harness interfaces, charging port sealing parts, battery pack sealing structures, BMS-related components, and anti-vibration electronic assemblies. These parts often require waterproof sealing, high and low temperature resistance, oil resistance, and long-term reliability.

In medical and health care devices, metal silicone overmolding can be used for medical handles, probe components, sensor parts, metal inserts, sealing components, fluid control parts, and diagnostic device structures. These applications may require medical grade silicone options, clean production awareness, precise structure, and reliable sealing.

For healthcare projects, medical grade silicone parts can be customized for device sealing, soft-touch protection, metal insert bonding, sensor integration, and patient-contact structures.

In wearable electronics, metal silicone overmolding can be used for charging contacts, metal sensor areas, smartwatch connectors, smart ring structures, conductive terminals, and small waterproof electronic modules. These parts need compact design, sweat resistance, soft contact, and stable assembly.

In beauty and health care devices, metal overmolded silicone parts can be used for metal handles, electrode areas, waterproof sealing components, soft grip structures, and device interface seals. Silicone helps improve comfort, anti-slip performance, water resistance, and appearance quality.

In industrial products, metal silicone overmolding can be used for sealing plugs, metal-reinforced gaskets, electrical insulation parts, protective covers, vibration-damping components, and custom rubber-metal assemblies.

People Also Ask: What Is the Difference Between Metal Silicone Overmolding and Traditional Assembly?

Traditional assembly often uses separate rubber seals, manual adhesive bonding, mechanical fastening, or post-assembly gaskets. These methods may work for simple products, but they can create risks in compact, waterproof, or high-reliability components.

Metal silicone overmolding integrates silicone directly onto the metal insert. This can improve positioning accuracy, reduce assembly steps, and form a more stable sealing structure. For small parts or complex sealing areas, overmolding also reduces the risk of gasket movement, uneven glue application, or assembly misalignment.

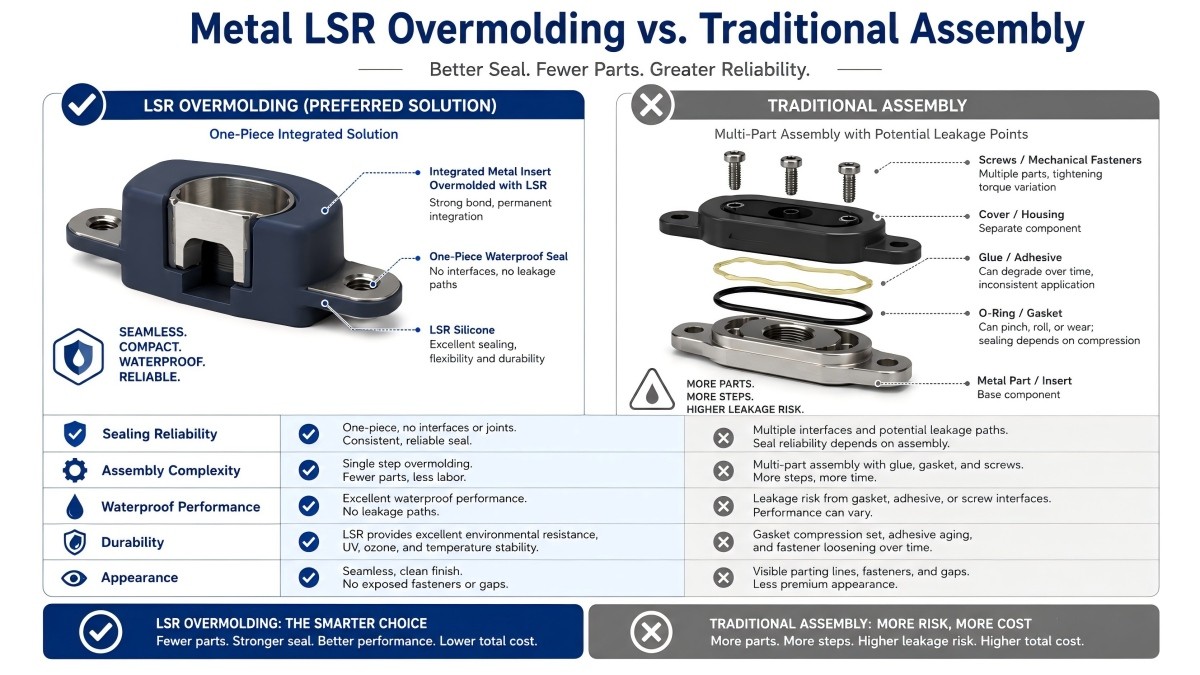

Metal Silicone Overmolding vs Traditional Assembly

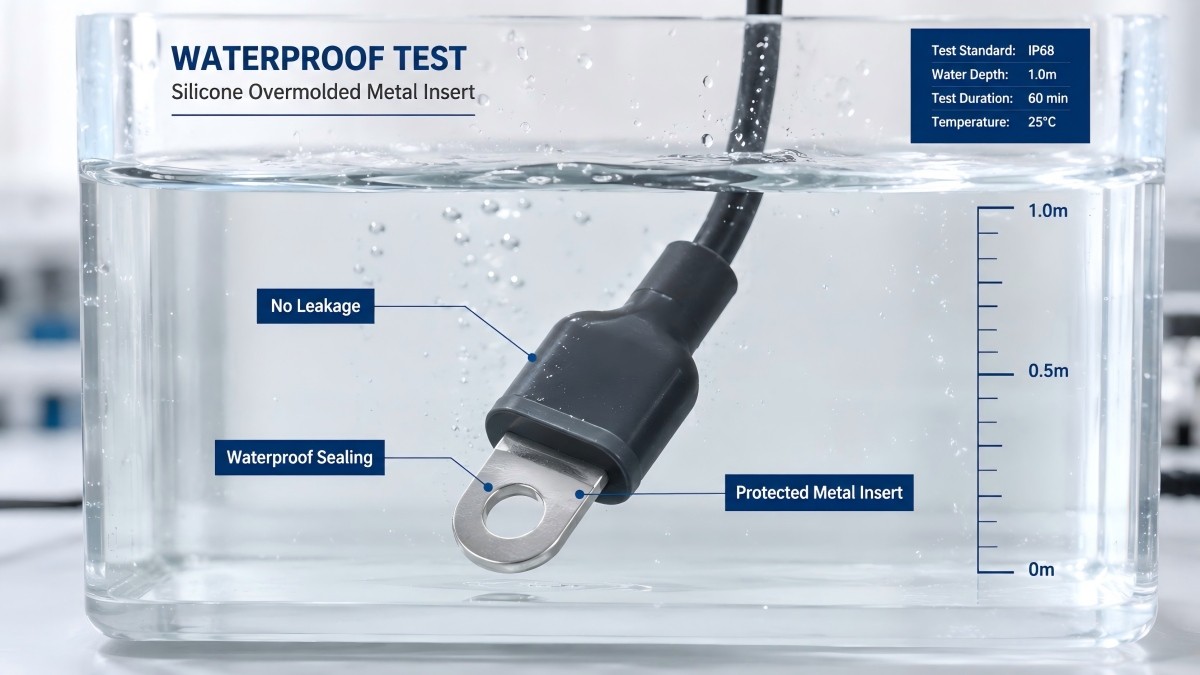

People Also Ask: Can Metal Silicone Overmolding Achieve IP67 or IP68 Waterproof Sealing?

Metal silicone overmolding can support IP67 or IP68 waterproof sealing when the product design, silicone material, metal surface, mold accuracy, bonding structure, and assembly conditions are properly controlled. However, waterproof performance is not decided by silicone alone.

Waterproof success depends on sealing geometry, silicone compression, metal surface condition, bonding area, insert positioning, mating part tolerance, and final product assembly. If the structure has an open path for water, even a high-performance silicone material cannot guarantee sealing performance.

For automotive applications, waterproof risk often appears around connector terminals, wire harness interfaces, charging ports, sensor housings, and battery-related electronic modules. For medical and beauty devices, sealing risk may appear around metal handles, electrode areas, probe structures, and device interfaces.

For automotive electronics and EV applications, automotive waterproof silicone seals can help protect connector terminals, sensor modules, wire harness interfaces, and battery-related electronic structures.

A professional metal silicone overmolding supplier should review waterproof risk during the DFM stage, not after mass production. Early design review can reduce mold modification, sampling delays, bonding failure, and sealing failure.

People Also Ask: What Design Factors Affect Metal Silicone Overmolding Quality?

The quality of metal silicone overmolding depends on several important design and production factors.

The first factor is metal insert positioning. The metal part must be accurately fixed inside the mold. Poor positioning can cause uneven silicone thickness, sealing misalignment, blocked functional areas, or assembly interference.

The second factor is metal surface condition. Oil, oxidation, dust, plating issues, or improper surface treatment can reduce bonding between silicone and metal. For bonding-critical projects, surface treatment should be confirmed before mass production.

The third factor is silicone flow control. Liquid silicone can flow into small spaces, which is useful for precision molding but also creates flash risk if the mold is not well designed. Mold sealing, venting, insert fit, and parting line control are very important.

The fourth factor is mechanical locking design. In some projects, chemical bonding alone may not be enough. Grooves, holes, ribs, undercuts, or special metal structures can help improve mechanical retention between silicone and metal.

The fifth factor is application environment. Metal overmolded silicone parts may face water, oil, sweat, heat, cold, vibration, cleaning fluids, repeated assembly, or mechanical stress. These conditions should be considered during material and structure design.

People Also Ask: What Defects Can Happen in Metal Silicone Overmolding?

Common defects include metal insert displacement, silicone flash, incomplete filling, bubbles, poor bonding, edge lifting, uneven silicone thickness, deformation, contamination, and sealing failure.

Insert displacement is a major risk because metal parts must stay in the correct position during molding. If the insert moves, the silicone layer may not seal correctly, and the final part may fail assembly.

Flash can happen when liquid silicone flows into tiny gaps around the metal insert, mold parting line, or functional area. Excess flash may affect appearance, assembly, sealing, or electrical contact.

Poor bonding can cause peeling, edge lifting, water leakage, or delamination. This is especially dangerous for waterproof parts, because even a small separation path may allow moisture to enter the product.

Bubbles or voids may reduce appearance quality, bonding strength, and sealing stability. They can be caused by trapped air, poor venting, contamination, material issues, or process instability.

A reliable manufacturer should prevent these defects through DFM review, mold precision, insert positioning control, metal surface preparation, material selection, molding parameter optimization, and strict inspection.

People Also Ask: How Do You Choose a Metal Silicone Overmolding Manufacturer?

Choosing a metal silicone overmolding manufacturer requires evaluating both silicone molding capability and metal insert molding experience. This process is more complex than ordinary silicone molding because the supplier must control insert positioning, bonding, sealing, and long-term reliability.

A capable supplier should provide DFM support before mold opening. This helps identify metal positioning risks, surface treatment risks, bonding risks, flash risks, sealing problems, and assembly interference.

The manufacturer should also have experience with liquid silicone injection molding, silicone overmolding, insert molding, silicone over metal, silicone over plastic, FPC silicone overmolding, and waterproof silicone seals. For compact or high-reliability parts, small design details can determine whether the final product can pass assembly and waterproof testing.

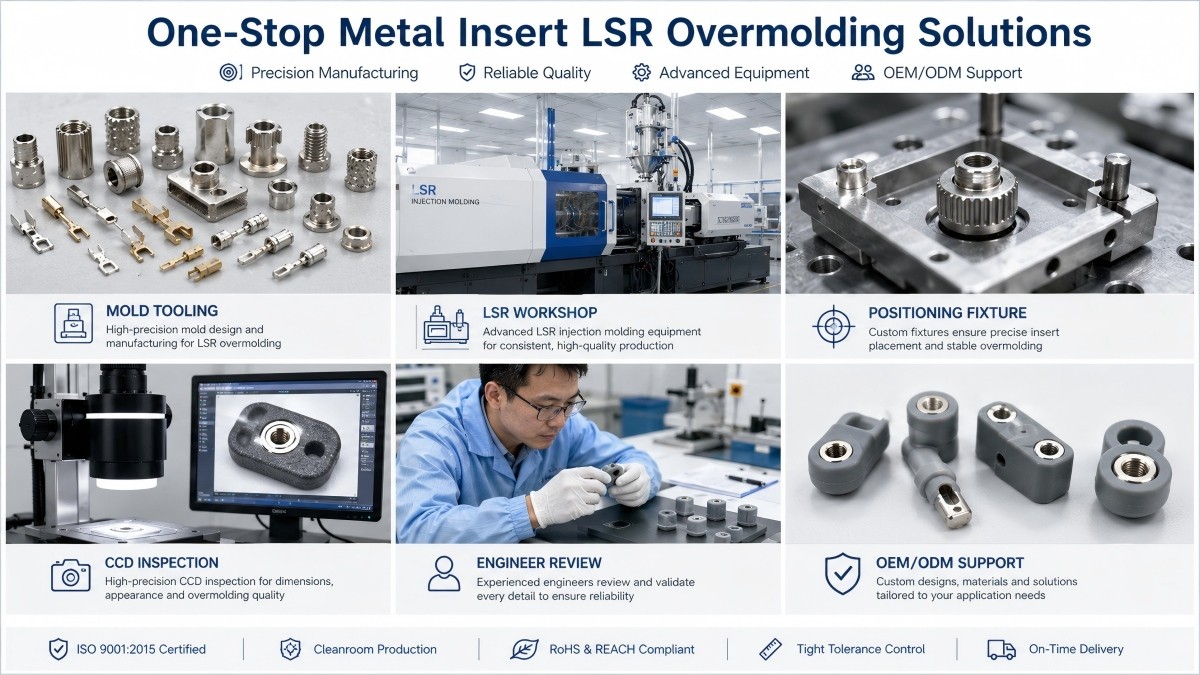

Shenzhen Liyongan Silicone Rubber Products Co., Ltd. owns a 4500+ square meter silicone processing plant in China, with 12 liquid silicone injection molding machines, 26 compression molding machines, 20 CCD inspection devices, a mold workshop, liquid silicone molding workshop, solid silicone molding workshop, dust-free workshop, engineering team, production team, and quality control team.

For global OEM/ODM buyers, silicone overmolding solutions can be customized for metal inserts, plastic parts, FPC, silicone, waterproof seals, medical components, wearable electronics, automotive electronics, beauty devices, and industrial custom silicone parts.

People Also Ask: What Information Should Buyers Provide for a Metal Overmolding Project?

To evaluate a metal silicone overmolding project accurately, buyers should provide clear technical information. Useful files include metal insert drawings, 3D assembly files, product photos, samples, silicone coverage area, exposed functional area, bonding requirements, waterproof level, hardness requirement, material requirement, and target application.

For metal insert projects, the supplier may also need to know the metal type, surface finish, plating condition, tolerance, cleaning requirement, and whether the part needs electrical conductivity, grounding, fixing strength, or corrosion resistance.

Buyers should also provide the application environment. For example, will the part be used in automotive electronics, medical devices, wearable electronics, beauty devices, industrial equipment, or outdoor products? Will it face sweat, water, oil, high temperature, low temperature, vibration, repeated cleaning, or mechanical stress?

The more complete the project information, the faster the manufacturer can provide DFM suggestions, mold quotation, sampling plan, production risk evaluation, and mass production support.

FAQ About Metal With Silicone OverMolding Manufacturing

1. What is metal silicone overmolding used for?

Metal silicone overmolding is used to produce waterproof, insulated, anti-vibration, and soft-touch components by molding silicone over metal inserts. It is commonly used for automotive connectors, medical device parts, wearable electronics, beauty devices, sensors, industrial seals, and custom metal-silicone assemblies.

2. Can silicone bond strongly to metal?

Yes, silicone can bond to metal when the metal surface, material compatibility, primer or surface treatment, mechanical locking design, mold temperature, and curing process are properly controlled. For waterproof parts, bonding reliability should be evaluated before mass production.

3. Can metal silicone overmolding achieve IP67 or IP68 waterproof sealing?

Yes. Metal silicone overmolding can support IP67 or IP68 waterproof sealing when the sealing structure, silicone material, mold accuracy, insert positioning, bonding area, and final assembly are properly designed and tested.

4. What metals can be used for silicone overmolding?

Common metal inserts may include stainless steel, aluminum, copper, brass, plated terminals, metal brackets, metal shafts, and precision stamped parts. The best bonding method depends on the metal type, surface finish, plating, and application environment.

5. What information is needed for a metal silicone overmolding project?

Buyers should provide metal insert drawings, 3D files, samples, silicone coverage area, functional exposed areas, metal material, surface treatment, hardness requirement, waterproof level, application environment, estimated quantity, and testing requirements.

6. How do I choose a reliable metal silicone overmolding manufacturer?

Choose a manufacturer with liquid silicone injection molding equipment, mold design capability, metal insert molding experience, silicone overmolding expertise, DFM support, quality inspection, and experience in waterproof sealing components.

Conclusion

Metal with silicone overmolding manufacturing is a valuable process for creating waterproof, insulated, shock-resistant, and durable components that combine the strength of metal with the flexibility and sealing performance of silicone.

For B2B buyers, the key is not only whether silicone can cover a metal insert. The real challenge is achieving accurate positioning, strong bonding, reliable waterproof sealing, clean appearance, and repeatable mass production.

Shenzhen Liyongan Silicone Rubber Products Co., Ltd. provides custom metal silicone overmolding, liquid silicone injection molding, silicone over plastic, FPC silicone overmolding, waterproof silicone seals, wearable device silicone parts, medical grade silicone parts, automotive electronic sealing parts, beauty device components, and industrial custom silicone components.

If you are developing waterproof metal insert parts, automotive connector seals, medical device components, wearable electronic modules, beauty device parts, or custom silicone overmolded components, you can request a custom metal silicone overmolding quote by sharing your drawings, samples, or project requirements with our engineering team.

What type of metal silicone overmolding project are you developing? Leave a comment, share this article with your engineering or sourcing team, or contact us to discuss your custom silicone overmolding requirements.
