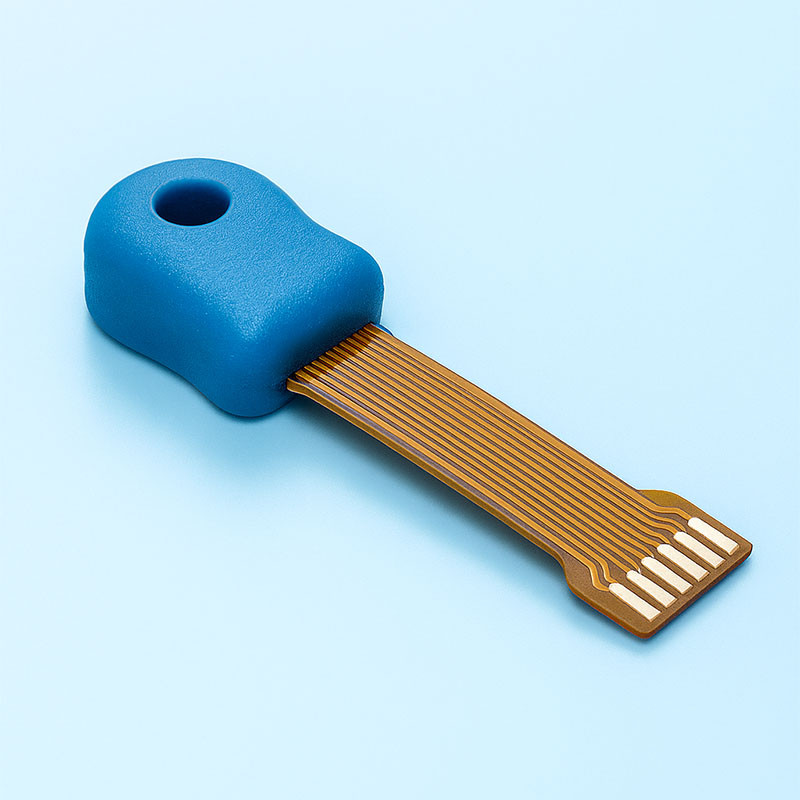

How Silicone Overmolding Enhances FPC Durability in Medical Devices

Introduction:

In the rapidly evolving landscape of medical device manufacturing, the durability and reliability of Flexible Printed Circuits (FPCs) are critical factors that determine device longevity and patient safety. Among the most effective solutions to bolster FPC resilience is silicone overmolding, particularly using organic silicone materials. This innovative process not only enhances mechanical robustness but also provides superior protection against environmental stressors, ensuring consistent performance over extended periods.

The Significance of FPC Durability in Medical Applications

Flexible Printed Circuits (FPCs) are integral components in modern medical devices, ranging from implantable sensors to handheld diagnostic tools. Their flexibility allows for compact, lightweight designs that conform to complex anatomical structures. However, this flexibility introduces vulnerabilities such as mechanical stress, chemical exposure, and moisture ingress.

Durability of FPCs directly impacts device reliability, patient safety, and regulatory compliance. Failures in FPCs can lead to malfunction, data inaccuracies, or device failure, potentially jeopardizing patient health. Therefore, protective solutions that extend FPC lifespan are paramount.

Why Silicone Overmolding Is the Optimal Solution for FPC Protection

Silicone overmolding involves enveloping the FPC with a silicone-based material, forming a protective layer that shields against mechanical and environmental threats. The organic silicone used in this process offers unique advantages:

Exceptional Flexibility and Elasticity:

Silicone's inherent elastic properties accommodate repeated bending and flexing without cracking or delaminating.

Chemical Resistance:

Silicone resists corrosive chemicals, medication exposure, and biological fluids, preventing degradation.

Thermal Stability:

Maintains performance across a wide temperature range, essential for sterilization processes.

Biocompatibility:

Organic silicone materials are non-toxic and biocompatible, suitable for implantable and direct-contact medical devices.

Waterproofing and Moisture Resistance:

Silicone forms a water-tight barrier, preventing moisture ingress that could cause short circuits or corrosion.

The Organic Silicone Material: A Game-Changer in Medical Device Protection

Organic silicone materials, such as polydimethylsiloxane (PDMS), are widely favored in medical overmolding due to their biocompatibility and chemical inertness. These silicones are synthesized with organically derived components that enhance their mechanical properties and processing flexibility.

Key Properties of Organic Silicone for FPC Overmolding

Property	Description	Relevance to Medical FPCs
High Flexibility	Maintains elasticity over repeated cycles	Prevents cracking during device operation
Excellent Adhesion	Bonds effectively to various substrates	Ensures a seamless protective layer
Chemical Inertness	Resists bodily fluids, disinfectants	Protects against chemical degradation
Thermal Stability	Operates reliably from -50°C to +200°C	Compatible with sterilization protocols
Biocompatibility	Meets ISO 10993 standards	Suitable for implants and skin-contact devices

Manufacturing Process of Silicone Overmolding for FPCs

Silicone overmolding involves several precise manufacturing steps to ensure optimal adhesion, mechanical integrity, and long-term durability:

FPC Preparation: The flexible circuit is thoroughly cleaned to remove contaminants and surface oils, ensuring optimal bonding.

Mold Design: Customized molds are designed to precisely encapsulate the FPC, considering flex points and connectors.

Silicone Material Selection: Organic silicone compounds are chosen based on application-specific requirements such as sterilization method and environmental exposure.

Overmolding Process: Using injection molding or potting techniques, the silicone material is injected or poured into the mold, enveloping the FPC.

Curing: The silicone layer is cured at controlled temperatures, often through heat or UV exposure, to achieve full cross-linking.

Post-Processing: Excess silicone is trimmed, and the overmolded FPC undergoes quality inspection for adhesion, flexibility, and absence of defects.

Advantages of Silicone Overmolding in Extending FPC Lifespan

1. Mechanical Protection Against Repeated Flexing

Medical devices often undergo dynamic movements during operation. Silicone's elasticity absorbs mechanical stress, preventing micro-cracks and delamination that typically compromise FPCs. This flexibility ensures consistent performance over millions of bending cycles.

2. Environmental Shielding

Silicone overmolds act as barriers against moisture, biofluids, and disinfectants, which are common in medical environments. This moisture resistance significantly reduces the risk of corrosion and electrical failures.

3. Enhanced Thermal and Chemical Resistance

The thermal stability of organic silicone allows FPCs to withstand high-temperature sterilization techniques, such as autoclaving and EO gas sterilization. Additionally, silicone's chemical inertness ensures that exposure to medications or disinfectants does not compromise the circuit's integrity.

4. Improved Biocompatibility and Safety

Organic silicone materials are biocompatible, making them ideal for implantable devices or skin-contact applications. They minimize allergic reactions and toxicity risks, aligning with stringent regulatory standards.

5. Long-Term Reliability and Reduced Maintenance

By preventing environmental ingress and mechanical fatigue, silicone overmolding extends the service life of FPCs, reducing repair costs and device downtime. This reliability is critical in life-critical medical applications.

Case Studies: Silicone Overmolding in Action

Case Study 1: Implantable Cardiac Monitors

A leading manufacturer incorporated silicone overmolding on their implantable FPCs, resulting in a 50% increase in device lifespan. The silicone layer effectively protected against body fluids and mechanical stress during patient movement, ensuring consistent signal quality over years.

Case Study 2: Wearable Medical Sensors

In wearable health monitors, silicone overmolding provided waterproofing and flexibility, allowing the devices to withstand daily wear and tear. This application demonstrated improved durability and user comfort, boosting patient compliance.

Design Considerations for Silicone Overmolding of FPCs

Material Compatibility: Ensure that the silicone material chosen exhibits strong adhesion to the FPC substrate, typically polyimide or polyester films.

Thickness Optimization:

Balance between protection and flexibility by optimizing the overmold thickness.

Curing Process:

Select curing parameters that do not damage the delicate circuit components.

Connector Design:

Incorporate strain relief features and flexible zones to accommodate movement without compromising the seal.

Sterilization Compatibility:

Verify that the silicone withstands intended sterilization methods without degradation.

Future Trends in Silicone Overmolding for Medical FPCs

Advancements in silicone formulations are leading toward ultra-thin, transparent, and antimicrobial coatings. These innovations aim to further enhance device performance, patient safety, and ease of manufacturing.

Emerging nanocomposite silicones incorporate antimicrobial agents for infection control. Additionally, bio-inspired silicone materials mimic skin elasticity for more natural device integration.

Conclusion: Silicone Overmolding as a Critical Enabler of FPC Durability in Medical Devices

Silicone overmolding using organic silicone materials represents a fundamental advancement in medical device engineering. By providing superior mechanical resilience, environmental protection, and biocompatibility, this process substantially extends the operational lifespan of Flexible Printed Circuits.

As medical devices become increasingly complex and miniaturized, the role of silicone overmolding will only grow in importance. It ensures that innovative, reliable, and safe devices can be developed to meet the rigorous demands of modern healthcare.
