How Silicone Overmolding Enhances Electrical Insulation in Plastic Parts

In the rapidly evolving landscape of electronic device manufacturing, the demand for robust electrical insulation has never been more vital. As electronic components become increasingly miniaturized and complex, ensuring effective insulation not only guarantees device safety but also enhances performance, durability, and longevity. Among the most advanced solutions available today is silicone overmolding, a transformative process that significantly elevates the electrical insulation properties of plastic parts.

Understanding Silicone Overmolding: A Game-Changer in Electrical Safety

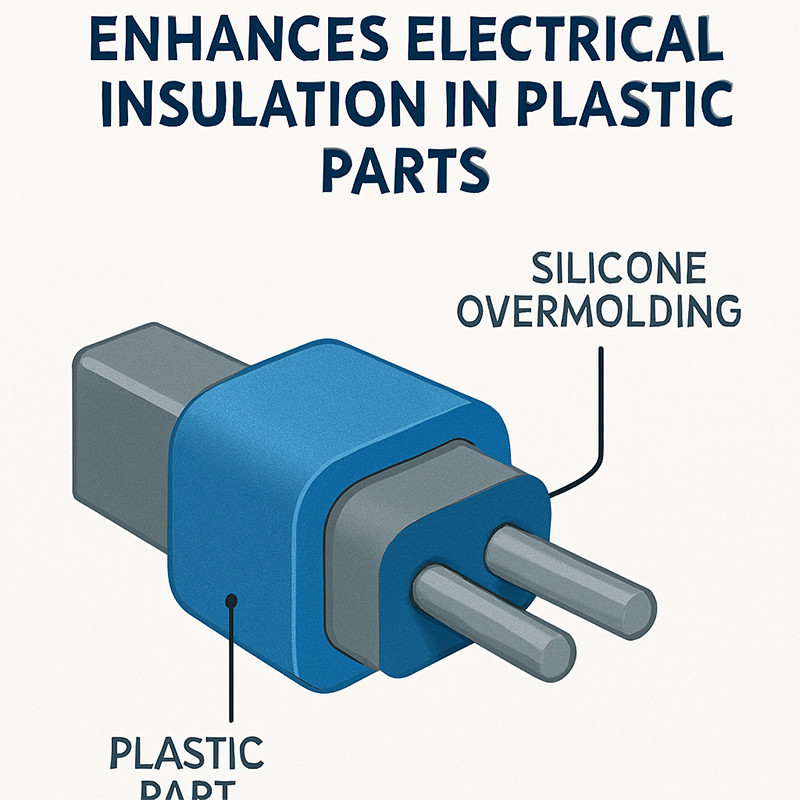

Silicone overmolding involves the application of a silicone elastomer layer over existing plastic components. This process creates a composite structure that combines the mechanical strength and chemical resistance of plastics with the excellent dielectric properties of silicone. The result is a highly insulated, durable, and flexible component capable of withstanding harsh environmental conditions.

The Science Behind Silicone's Superior Dielectric Properties

Silicone materials possess exceptionally high dielectric strength, often exceeding 300 volts per mil (or 12 kV/mm), making them ideal for electric insulation applications. Their low dielectric constant (typically around 2.8) minimizes electrical parasitic effects, ensuring stable performance even under high voltage stresses. Moreover, silicone exhibits excellent dielectric stability across a wide temperature range, from -60°C to +250°C, maintaining insulation integrity in extreme environments.

1. Superior Dielectric Performance

Silicone’s high dielectric strength provides a robust barrier against electrical leakage, arcing, and shorts. This is especially critical in high-voltage applications such as power supplies, automotive electronics, and medical devices, where failure of insulation can lead to catastrophic consequences.

2. Enhanced Moisture and Chemical Resistance

Silicone coatings are impervious to moisture, oils, and chemicals, preventing corrosion and degradation of the underlying plastic parts. This waterproofing capability ensures consistent electrical insulation even in humid, wet, or chemically aggressive environments.

3. Improved Mechanical Durability and Flexibility

Unlike brittle coatings, silicone overmolding provides flexibility that accommodates thermal expansion, mechanical shocks, and vibrations. This elasticity reduces the risk of cracks or delamination, thereby maintaining long-term insulation integrity.

4. Temperature Resilience

Silicone's ability to operate reliably across extreme temperature ranges ensures insulation performance in automotive, aerospace, and industrial settings where temperature fluctuations are common.

5. Electrical Noise Suppression

Silicone’s dielectric properties help suppress electromagnetic interference (EMI) and radio-frequency interference (RFI), contributing to cleaner signal transmission within electronic systems.

Step 1: Preparation of Plastic Components

The process begins with precise design and manufacturing of the plastic parts, which are often 3D modeled to ensure optimal overmolding coverage. Surface cleaning and priming may be necessary to promote adhesion.

Step 2: Silicone Material Selection

Choosing the appropriate silicone elastomer is crucial. Factors such as hardness (durometer), thermal stability, dielectric strength, and chemical resistance are considered based on the application requirements.

Step 3: Overmolding Technique

Using state-of-the-art injection molding equipment, liquid silicone rubber (LSR) is injected into molds surrounding the plastic component. The process involves:

Heating and injecting the silicone into the mold cavity

Curing at controlled temperatures to solidify the silicone

Ejecting the finished overmolded part

This method ensures uniform coating thickness and strong adhesion between silicone and plastic.

Step 4: Post-Processing and Quality Control

Post-molding inspections verify dimensional accuracy, adhesion strength, and electrical insulation properties. Non-destructive testing methods, such as dielectric breakdown testing, confirm insulation integrity.

In automotive applications, sensors are exposed to vibration, moisture, and temperature fluctuations. Silicone overmolding provides robust electrical insulation while maintaining flexibility for dynamic environments. For example, engine temperature sensors with silicone overmolded housings exhibit improved lifespan and reliable electrical performance, contributing to vehicle safety and efficiency.

When selecting a silicone overmolding process, consider:

Application-specific dielectric requirements

Environmental exposure factors

Mechanical stress levels

Compatibility with existing plastics

Regulatory and safety standards

Partnering with a specialized manufacturer ensures the utilization of advanced materials and precision engineering to meet all technical specifications.

Emerging innovations include nanocomposite silicone materials that offer enhanced dielectric properties and self-healing capabilities. Additionally, multi-material overmolding techniques enable the integration of conductive and insulating layers within a single component, further optimizing electrical performance and miniaturization.

Silicone overmolding represents a quantum leap in electrical insulation technology, combining flexibility, durability, and exceptional dielectric performance. Its ability to protect plastic components against electrical failures, environmental hazards, and mechanical stresses makes it indispensable across various high-stakes industries. As electronic systems continue to evolve, silicone overmolding will remain at the forefront, enabling engineers to design safer, more reliable, and longer-lasting products.
