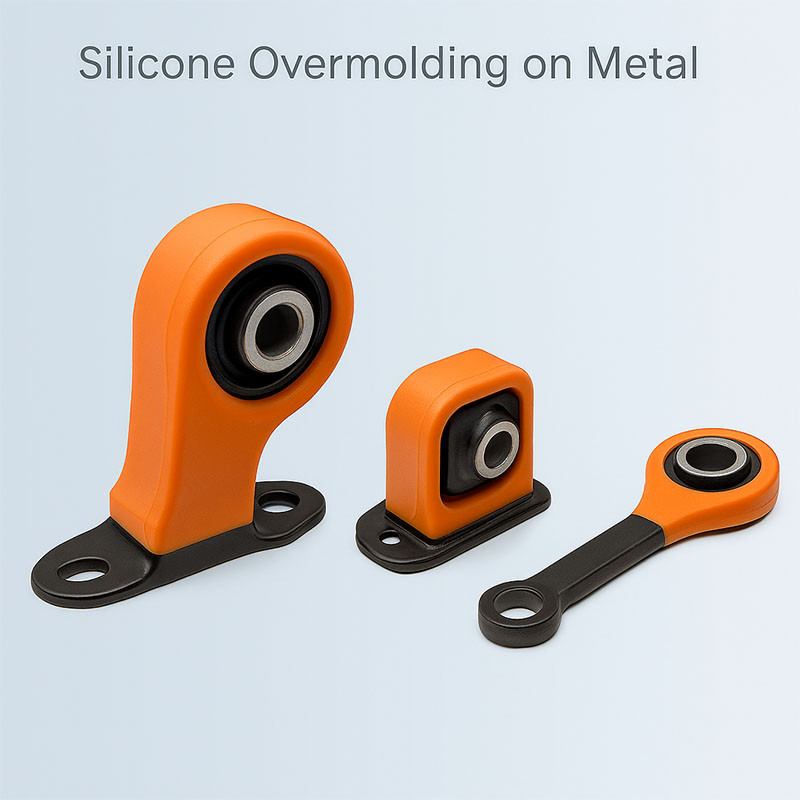

Design Innovations Enabled by Silicone Overmolding on Metal

Introduction: Revolutionizing Product Design with Silicone Overmolding on Metal

In the rapidly advancing world of engineering and product development, silicone overmolding on metal has emerged as a groundbreaking technology that unlocks new levels of durability, flexibility, and aesthetic appeal. This innovative process seamlessly combines the strength of metals with the versatile properties of silicone, leading to design breakthroughs across multiple industries, including consumer electronics, medical devices, automotive, and industrial equipment.

Our comprehensive exploration delves into the core advantages, material science, manufacturing techniques, and cutting-edge applications of silicone overmolding on metal components. By understanding these facets, manufacturers and designers can harness this technology to create next-generation products that outperform traditional solutions.

Understanding Silicone Overmolding on Metal: The Foundation of Innovation

Silicone overmolding involves the process of depositing a liquid silicone elastomer (LSE) onto a metal substrate, which is typically pre-formed or machined. The silicone material is then cured, forming a robust, integrated layer that adheres to the metal surface, providing enhanced protection, insulation, and aesthetic qualities.

This process is distinguished by its ability to conform precisely to complex geometries, offering customized coatings that can serve multiple functions simultaneously. The interfacial bonding between silicone and metal is achieved through advanced surface treatments or adhesion promoters, ensuring long-term stability and resistance to environmental factors.

Key Benefits of Silicone Overmolding on Metal Components

1. Superior Thermal Management and Insulation

Silicone's excellent thermal stability allows it to withstand high temperatures without degradation, making it ideal for thermal insulation in electronic enclosures and automotive parts. The overmolded silicone layer acts as a thermal barrier, protecting sensitive components from heat while maintaining efficient heat dissipation.

2. Enhanced Mechanical Durability and Flexibility

Unlike rigid coatings, silicone elastomers provide remarkable flexibility and shock absorption, safeguarding metal parts from vibration, impact, and mechanical stress. This combination extends the lifespan of products subjected to harsh conditions, such as automotive engines or industrial machinery.

3. Improved Sealing and Environmental Resistance

Silicone’s sealing capabilities create impermeable barriers against moisture, dust, chemicals, and UV radiation. This is critical for outdoor electronics, medical devices, and automotive sensors, where environmental exposure can compromise performance.

4. Aesthetic and Tactile Enhancement

The smooth, customizable surface of silicone overmolds offers enhanced aesthetic appeal and tactile comfort, making products more attractive and user-friendly. This is especially relevant in consumer electronics and wearable devices.

5. Chemical Resistance and Biocompatibility

Silicone’s resistance to chemicals and sterilization processes makes it suitable for medical applications. Its biocompatibility ensures safe contact with skin and biological tissues, enabling innovative medical device designs.

Material Science Behind Silicone Overmolding on Metal

The success of silicone overmolding hinges on the interplay of material properties and surface preparation techniques. Metals such as aluminum, stainless steel, and titanium are commonly used substrates due to their strength and thermal conductivity.

Surface treatments, including plasma cleaning, silane coupling agents, and primer applications, are essential to promote strong adhesion between silicone and metal. The curing process—which can be room temperature vulcanization (RTV) or high-temperature curing—determines the mechanical properties and long-term stability of the overmold.

Advancements in silicone formulations, such as addition-cure and condensation-cure silicones, have expanded the range of application temperatures, flexibility, and chemical resistance. These formulations enable customized overmolds tailored to specific performance requirements.

Manufacturing Techniques for Silicone Overmolding on Metal

1. Precision Mold Design and Metal Preparation

The process begins with designing molds that precisely match the geometry of the metal component. Metal parts are cleaned and treated to optimize adhesion, often involving abrasion, chemical cleaning, or plasma treatment.

2. Silicone Dispensing and Molding

Liquid silicone is dispensed into the mold cavity, which encapsulates the metal part. Injection molding or transfer molding techniques are utilized based on complexity and volume.

3. Curing and Post-Processing

The silicone is then cured under controlled conditions, ensuring complete cross-linking. Post-curing processes may include trimming, surface finishing, or additional treatments to enhance aesthetic and functional qualities.

4. Quality Control and Testing

Adherence, flexibility, temperature resilience, and environmental resistance are rigorously tested to guarantee performance and longevity of the overmolded component**.

Innovative Applications of Silicone Overmolding on Metal

1. Automotive Industry: Durable, Insulated Sensor Housings

Automotive sensors benefit from silicone overmolding by gaining vibration damping, thermal insulation, and waterproof sealing. These overmolds ensure reliable performance in extreme environments, reducing maintenance costs and improving safety.

silicone overmolded automotive connector

2. Medical Devices: Flexible, Sterilizable Components

Medical devices, such as implantable sensors and surgical instruments, leverage silicone overmolding for biocompatibility, sterilization resistance, and ergonomic design. The precise overmolding onto metal ensures reliable operation and patient safety.

3. Consumer Electronics: Enhanced Aesthetics and Durability

Smartphones, wearable devices, and portable electronics utilize silicone overmolds to create shock-resistant, water-resistant, and visually appealing products. The customizable textures and color options allow brands to differentiate their products in a competitive market.

4. Industrial Equipment: Sealed, Impact-Resistant Components

Industrial machinery components, including control panels and sensor housings, benefit from silicone’s chemical resistance and impact absorption. Overmolding enhances long-term operational reliability in harsh environments

Case Study: Silicone Overmolding in High-Performance Automotive Sensors

In a leading automotive manufacturer’s application, metal sensor housings were overmolded with high-temperature silicone elastomers. This innovation resulted in significant improvements in vibration resistance, thermal insulation, and waterproof sealing. The overmolded sensors maintained calibration accuracy under extreme conditions, demonstrating the transformative potential of this technology.

3. Consumer Electronics: Enhanced Aesthetics and Durability

Smartphones, wearable devices, and portable electronics utilize silicone overmolds to create shock-resistant, water-resistant, and visually appealing products. The customizable textures and color options allow brands to differentiate their products in a competitive market.

4. Industrial Equipment: Sealed, Impact-Resistant Components

Industrial machinery components, including control panels and sensor housings, benefit from silicone’s chemical resistance and impact absorption. Overmolding enhances long-term operational reliability in harsh environments

Future Trends and Developments in Silicone Overmolding Technology

1. Advanced Material Formulations

Emerging silicone compounds with enhanced thermal conductivity, self-healing properties, and antimicrobial features will expand application horizons, especially in medical and automotive sectors.

2. Integration with Additive Manufacturing

The convergence of 3D printing and overmolding techniques will allow rapid prototyping and customized solutions, reducing time-to-market and increasing design flexibility.

3. Sustainable and Eco-Friendly Materials

Development of biodegradable or recyclable silicone formulations will align the technology with environmental regulations and corporate sustainability goals.

Conclusion: Unlocking Limitless Design Possibilities

Silicone overmolding on metal stands as a cornerstone of modern product design, enabling innovative solutions that blend mechanical strength with flexibility, environmental resilience, and aesthetic appeal. As material science advances and manufacturing techniques evolve, the potential for creative, durable, and high-performance products is virtually limitless.

By harnessing this technology, manufacturers can differentiate their offerings, reduce costs, and enhance user experience—paving the way for the next wave of technological innovation across multiple industries.
