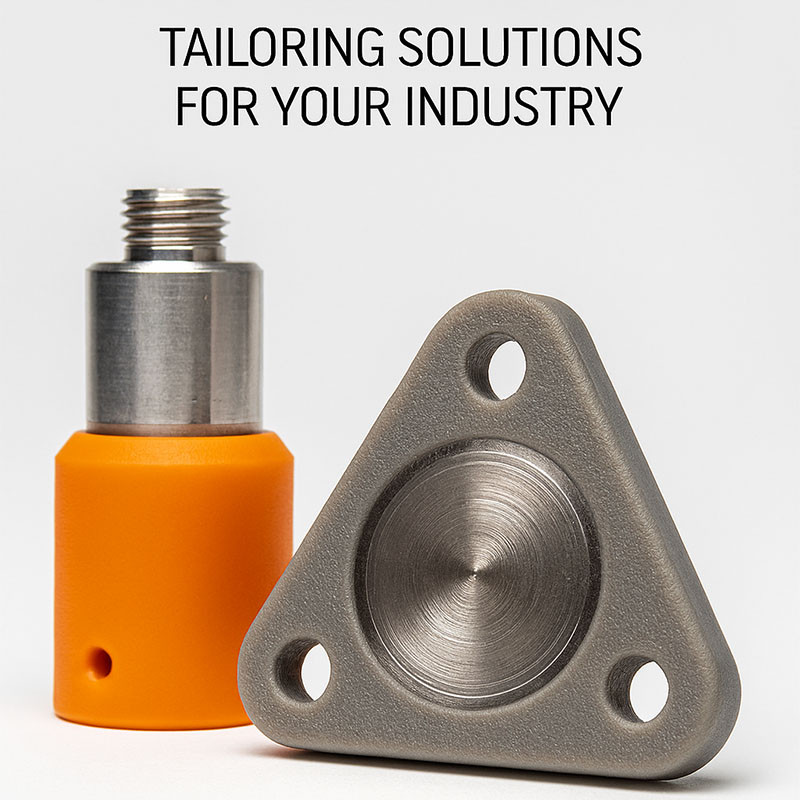

Custom Silicone Overmolding on Metal: Tailoring Solutions for Your Industry

Introduction: Revolutionizing Industry Standards with Custom Silicone Overmolding on Metal

In today’s competitive landscape, industries ranging from automotive and electronics to medical devices and aerospace demand innovative, durable, and precisely tailored solutions. Custom silicone overmolding on metal components emerges as a game-changing technology, offering superior protection, enhanced performance, and customized aesthetics. Our expertise in metal overmolding ensures that your products not only meet but exceed industry standards, providing long-lasting, reliable solutions tailored specifically to your application needs.

The Science and Art of Silicone Overmolding on Metal

Understanding Silicone Overmolding Technology

Silicone overmolding involves encasing or bonding a silicone elastomer layer onto a metal substrate, creating a composite component with enhanced mechanical, thermal, and electrical properties. This process involves precise mold design, material selection, and advanced manufacturing techniques to ensure perfect adhesion and functional integrity.

Why Choose Silicone Over Metal?

Superior Thermal Resistance:

Silicone withstands extreme temperatures, from -60°C to 230°C, ensuring consistent performance under harsh conditions.

Exceptional Electrical Insulation:

Silicone provides excellent dielectric properties, ideal for electrical and electronic applications.

Chemical Resistance:

Silicone resists corrosion, oxidation, and many chemicals, extending product lifespan.

Flexibility and Durability:

Silicone maintains elasticity and resistance to cracking even after prolonged use.

Aesthetic Versatility:

Silicone coatings can be colored, textured, and customized to match branding or functional requirements.

Industries Benefiting from Custom Silicone Overmolding on Metal

Automotive Industry

Enhanced Grip and Insulation: Overmolded silicone handles and switches improve driver safety and user comfort.

Thermal Management: Protects sensitive electronic modules from heat and vibration.

Corrosion Resistance: Shields metal parts from moisture and road salts.

Electronics and Electrical Equipment

Insulation of Connectors and Terminals: Prevents short circuits and electrical failures.

Vibration Damping: Absorbs shocks and vibrations, safeguarding delicate circuits.

Aesthetic Customization: Adds branding elements through color and texture.

Medical Devices

Biocompatible Coatings: Silicone is often used for medical-grade applications.

Enhanced Safety: Insulates and protects metal components within surgical instruments and diagnostic devices.

Sterilization Resistance: Maintains integrity after autoclaving and other sterilization processes.

Aerospace and Defense

High-Performance Coatings: Endures extreme conditions, including thermal cycling and mechanical stress.

Lightweight Solutions: Adds minimal weight while offering robust protection.

Corrosion and Wear Resistance: Extends service life of critical components.

Custom Silicone Overmolding Process: Step-by-Step

1. Design and Material Selection

Assessment of Application Requirements:

Temperature ranges, chemical exposure, mechanical stresses.

Material Compatibility:

Selecting high-quality silicone compounds compatible with metal substrates.

Mold Design:

Precision 3D CAD modeling to ensure perfect fit and function.

2. Surface Preparation of Metal Components

Cleaning:

Removal of oils, oxides, and contaminants.

Surface Treatment:

Techniques like abrasion, plasma treatment, or primer application to enhance adhesion.

3. Overmolding Process

Injection Molding:

Using high-precision molds to inject silicone directly onto the prepared metal parts.

Vulcanization:

Heat curing to solidify the silicone layer with optimal bonding.

Quality Control:

Inspection for air bubbles, uniformity, and adhesion strength.

4. Post-Processing and Testing

Final Inspection:

Visual and mechanical testing.

Performance Testing:

Thermal cycling, chemical resistance, and adhesion durability assessments.

Customization:

Additional texturing, coloring, or branding as required.

Material Selection for Custom Silicone Overmolding on Metal

Material Type	Properties	Typical Applications	Advantages
LSR (Liquid Silicone Rubber)	High purity, excellent flowability	Medical devices, electronics	Precision molding, biocompatibility
HTV (High-Temperature Vulcanized Silicone)	Superior heat resistance	Automotive, aerospace	Durability, chemical resistance
Room Temperature Vulcanized Silicone	Easy to process	Consumer products, seals	Flexibility, ease of application

Advantages of Custom Silicone Overmolding on Metal Components

Enhanced Mechanical Protection:

Absorbs shocks, vibrations, and impacts.

Superior Thermal Management:

Protects sensitive components from heat fluctuations.

Electrical Safety:

Provides robust insulation for electrical and electronic parts.

Corrosion and Environmental Resistance:

Shields metal parts from moisture, salts, and chemicals.

Aesthetic Flexibility:

Enables branding, color coding, and texturing.

Design Flexibility:

Allows for complex geometries and integrated features that are difficult with traditional coatings.

Case Studies: Successful Implementation of Silicone Overmolding

Automotive Control Modules

Challenge: Protecting control modules from vibration, heat, and moisture.

Solution: Custom silicone overmolding with high thermal stability and vibration damping properties.

Outcome: Increased reliability and longevity of control units, reducing warranty costs.

Medical Diagnostic Equipment

Challenge: Ensuring biocompatibility and sterilization durability.

Solution: Use of medical-grade silicone to overmold metal connectors.

Outcome: Improved user safety and device lifespan, meeting stringent healthcare standards.

Design Considerations for Optimal Silicone Overmolding

Adhesion Enhancement: Surface treatments such as plasma or primer application are critical.

Wall Thickness: Optimized to balance flexibility and durability.

Mold Design: Incorporate draft angles and venting to facilitate release and air removal.

Thermal Expansion Compatibility: Silicone and metal must have compatible coefficients of thermal expansion to prevent delamination.

Future Trends in Silicone Overmolding on Metal Components

Smart Overmolding:

Integration of sensor technology within silicone layers for real-time monitoring.

Eco-Friendly Materials:

Development of biodegradable or sustainable silicone compounds.

Advanced Manufacturing:

Adoption of additive manufacturing techniques for complex overmolds.

Enhanced Customization:

Use of digital printing and texturing for branding and functional features.

Conclusion: Elevating Industry Standards with Tailored Silicone Overmolding Solutions

Custom silicone overmolding on metal is a versatile, high-performance technology that transforms traditional metal components into durable, insulated, and aesthetically appealing parts. By leveraging advanced materials, precision manufacturing, and industry-specific design strategies, we deliver bespoke solutions that meet the rigorous demands of modern applications. Whether enhancing safety, performance, or visual appeal, our expertise ensures that your products stand out in the marketplace, outperforming competitors and setting new standards in your industry.
