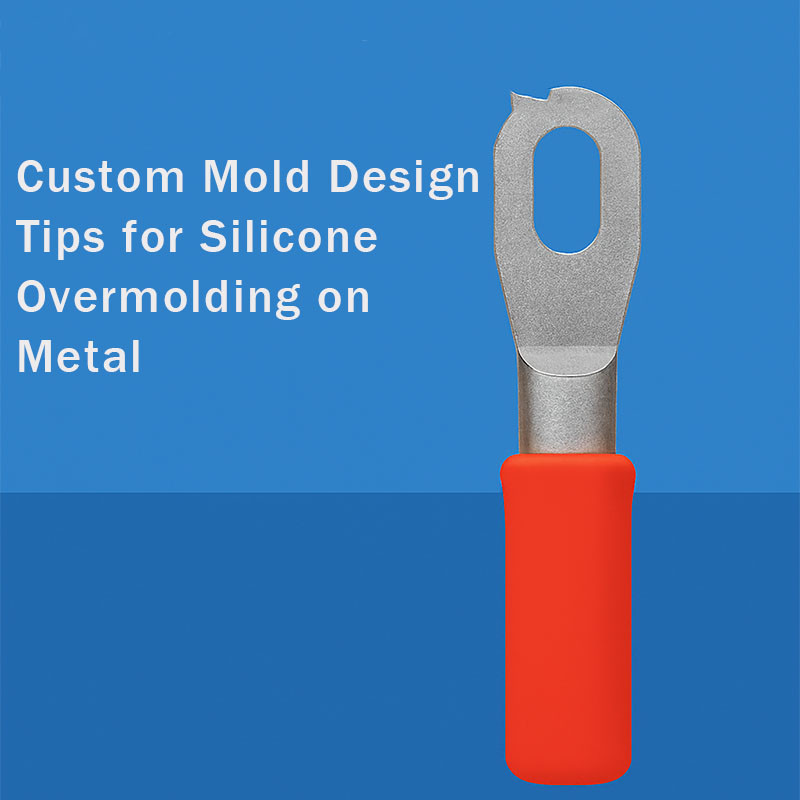

Custom Mold Design Tips for Silicone Overmolding on Metal: Precision Strategies for Superior Results
- Share
- publisher
- siliconeplus
- Issue Time
- Oct 18,2025
Summary
Expert tips for custom mold design in silicone overmolding on metal — improve adhesion, precision, and product durability.
Introduction:
In the realm of advanced manufacturing, silicone overmolding on metal components has become a vital process across industries including automotive, medical devices, consumer electronics, and industrial equipment. Achieving perfect adhesion, long-lasting durability, and dimensional accuracy hinges on meticulous mold design. Our expertise in custom mold engineering allows us to provide comprehensive, industry-leading tips that ensure optimized production outcomes for complex silicone-overmolded metal parts.
Understanding the Fundamentals of Silicone Overmolding on Metal
Before delving into mold design intricacies, it is essential to grasp the core principles of silicone overmolding on metal substrates. Silicone's flexibility, temperature resistance, and chemical inertness make it an ideal overmold material. However, the bonding process between silicone and metal requires precise mold engineering to prevent issues like delamination, voids, or imperfect surface finish.
Key Challenges in Overmolding Metal Components with Silicone
Adhesion Compatibility:
Ensuring strong chemical bonds between silicone and diverse metal surfaces.Thermal Management:
Managing heat transfer during the molding process to prevent warpage or metal deformation.Dimensional Stability:
Achieving tight tolerances despite differences in material properties.Surface Preparation:
Creating ideal surface textures for optimal silicone adhesion.Complex Geometry Handling:
Designing molds capable of forming intricate shapes without defects.Critical Factors in Designing Custom Molds for Silicone Overmolding
1. Material Compatibility and Surface Preparation
Surface treatment of the metal substrate is paramount. Techniques such as plasma treatment, silane coupling agents, or abrasive blasting can significantly enhance silicone adhesion. When designing the mold, consider incorporating features that facilitate surface cleaning and pre-treatment procedures.
2. Mold Material Selection
Choosing high-performance mold materials such as tool steels (P20, H13) or aluminum alloys can influence the mold lifespan and dimensional stability. For silicone overmolding, wear resistance and thermal conductivity are critical considerations.
3. Precise Mold Geometry and Draft Angles
Design molds with appropriate draft angles—typically 1 to 3 degrees—to facilitate easy part ejection and minimize damage. For complex geometries, incorporate undercut features with side actions or lifter mechanisms to enable full part release without compromising surface quality.
4. Venting and Degassing Channels
Effective venting channels are essential to prevent air entrapment and void formation during silicone injection. Incorporate strategically placed vents near high-pressure zones and thin sections to allow trapped gases to escape smoothly.
5. Incorporating Ribs and Textures for Enhanced Adhesion
Design surface textures such as micro-roughness or rib structures to improve mechanical interlocking between silicone and metal. These features should be integrated into the mold cavity to ensure consistent surface finish and bond strength.
Innovative Mold Design Techniques for Silicone Overmolding on Metal
1. Multi-Part and Modular Mold Systems
Implement multi-part molds for complex shapes, enabling sequential overmolding and easy part removal. Modular designs facilitate rapid prototyping and iterative testing for optimizing mold features.
2. Use of Silicone-Compatible Mold Inserts
Utilize silicone-resistant inserts made from high-temperature alloys or ceramic composites. These inserts can be replaced easily and help maintain dimensional accuracy for high-volume production.
3. Incorporating Cooling and Heating Channels
Design integrated thermal channels within the mold to control temperature precisely during the overmolding process. Proper temperature regulation minimizes shrinkage, warping, and cycle times.
4. Venting and Airflow Optimization
Optimize vent placement with micro-vents or pin vents that prevent air entrapment without damaging the silicone surface. Proper venting is critical for high-quality surface finishes.
Designing for Manufacturability and Quality Control
1. Tolerance Analysis and Dimensional Control
Employ finite element analysis (FEA) and tolerance simulations to predict dimensional deviations caused by material shrinkage and thermal effects. Design molds that accommodate these factors, ensuring consistent part quality.
2. Surface Finish and Texture Control
Specify surface finishes on the mold cavity based on desired silicone surface quality. For high-gloss finishes, opt for polished molds, while matte textures can be achieved through textured inserts or chemical etching.
3. Mold Durability and Maintenance
Design molds for easy maintenance, including quick-change inserts and self-cleaning features. This approach reduces downtime and costs associated with mold wear.
Case Studies: Successful Silicone Overmolding on Metal Components
Case Study 1: Automotive Sensor Housing
Challenge:
Overmolding silicone onto a precision-machined aluminum sensor housing with complex geometries.Solution:
Utilized multi-part molds with integrated cooling channels and micro-venting. Surface treatments included plasma cleaning to enhance adhesion. Resulted in excellent surface finish and robust bond strength, with a cycle time reduction of 20%.Case Study 2: Medical Device Enclosure
Challenge:
Achieving consistent silicone coating on stainless steel components with intricate features.Solution:
Incorporated modular mold inserts and textured surfaces to improve mechanical bonding. Used chemical surface treatments and controlled thermal profiles. The outcome was superior adhesion and compliance with medical standards.
Conclusion: Elevating Silicone Overmolding Through Superior Mold Design
Achieving exceptional quality in silicone overmolding on metal demands meticulous mold design that considers material compatibility, geometric complexity, thermal management, and surface preparation. By integrating advanced techniques such as multi-part molds, thermal channels, and optimized venting, manufacturers can maximize efficiency, reduce defects, and ensure long-term durability of their products.
Investing in custom mold design not only enhances product performance but also significantly reduces production costs and time-to-market. Our expert team is committed to delivering tailored solutions that meet the most rigorous industry standards, ensuring your silicone-overmolded metal parts stand out in quality and reliability.
