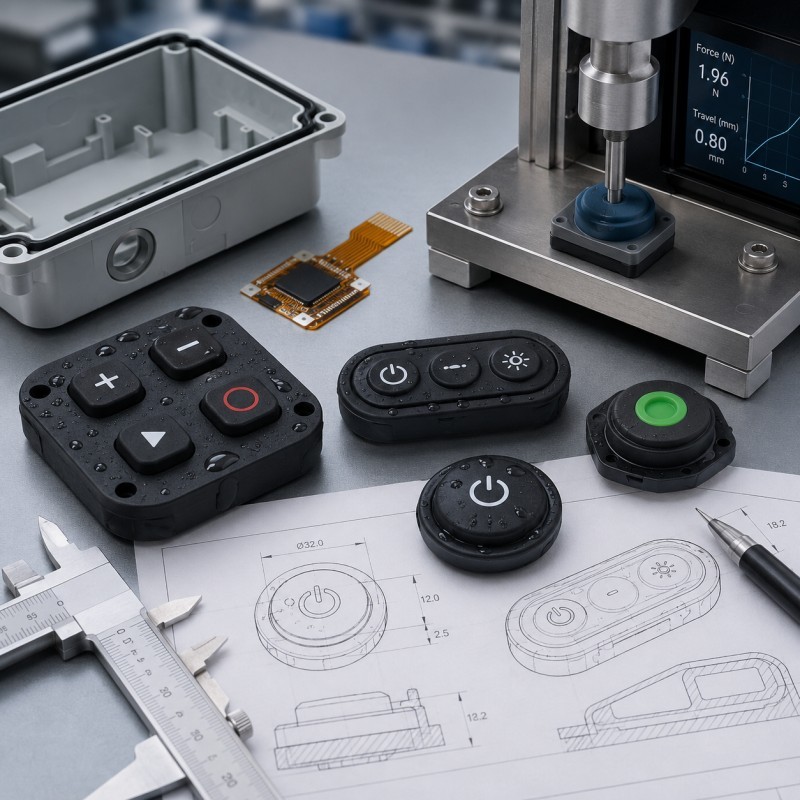

Custom LSR Overmolded Buttons for Electronics

Buttons are small components, but they often determine the reliability of an electronic interface. In automotive electronics, wearable devices, medical equipment, industrial control panels, sensors, and 3C products, a button must do more than provide a press function.

It may need to seal against water and dust, maintain stable rebound, protect the internal switch, resist repeated pressing, provide soft touch, and fit precisely with the plastic or metal housing.

Custom LSR overmolded buttons are designed for these requirements. By molding liquid silicone rubber directly onto plastic, metal, FPC, or other insert structures, engineers can create integrated button components with sealing, rebound, protection, and appearance functions in one part.

For OEM/ODM projects, a successful overmolded button design should be reviewed before tooling. Material hardness, button travel, sealing lip structure, compression ratio, bonding area, mold parting line, flash control, and testing standards all affect the final performance.

Answer Excerpt

Custom LSR overmolded buttons are silicone button structures molded onto plastic, metal, FPC, or electronic interface components. They help improve waterproof sealing, dust protection, soft touch, rebound stability, switch protection, and assembly consistency. They are commonly used in automotive electronics, wearable devices, medical devices, sensors, industrial control panels, beauty devices, and compact 3C products.

What Is a Custom LSR Overmolded Button?

A custom LSR overmolded button is a silicone button or keypad structure formed by molding liquid silicone rubber onto another substrate or around a functional interface area.

The substrate may be a plastic housing, metal insert, FPC circuit area, sensor module, connector cover, or another silicone component. After molding and curing, the silicone button becomes part of the integrated assembly.

Unlike a separate silicone keypad that is installed later, an overmolded button can be positioned more accurately on the product structure. This helps reduce assembly movement, sealing gaps, and tolerance issues.

LSR overmolded buttons are often used when the product needs a combination of soft touch, waterproof sealing, dustproof protection, rebound control, and stable mass production.

Why Electronic Buttons Need Overmolding

Electronic buttons are often located on product surfaces, side interfaces, connector covers, sensor modules, or handheld control areas. These positions are exposed to user pressing, moisture, sweat, dust, vibration, cleaning agents, and repeated assembly stress.

Traditional button designs may use a separate silicone keypad, adhesive film, assembled rubber cover, or mechanical button structure. These solutions can work, but they may create risks when the product becomes smaller, thinner, or more demanding.

Common problems include button displacement, water leakage around the button edge, unstable pressing feel, poor rebound, dust entering the switch area, glue overflow, difficult assembly, flash affecting movement, and inconsistent appearance.

LSR overmolding helps solve these issues by forming the silicone button directly on the required substrate or housing area.

Key Benefits of LSR Overmolded Buttons

LSR overmolded buttons can improve sealing because the silicone structure can be designed with a sealing lip, bonding edge, compression zone, or integrated cover area.

They can improve tactile feel because silicone hardness, button thickness, dome shape, and travel distance can be adjusted according to the required pressing experience.

They can improve rebound stability because the silicone geometry can be designed to return after repeated pressing.

They can also reduce assembly risk. Since the silicone button is molded in place, there is less risk of a separate rubber part moving, tilting, or being installed incorrectly.

For mass production, LSR overmolding also provides better repeatability than manual gluing or loose assembly, especially for small precision electronic interface parts.

Button Feel and Rebound Design

Button feel is one of the most important factors in electronic interface design. A button should not feel too hard, too soft, too loose, or unstable.

For LSR overmolded buttons, tactile feel is affected by silicone hardness, button wall thickness, dome height, button diameter, travel distance, support structure, and the switch position under the button.

A softer silicone may improve comfort and sealing contact, but it may feel weak or deform too much if the structure is too thin. A harder silicone may improve shape retention, but it may require more pressing force.

The button should also rebound consistently after repeated use. Poor rebound may be caused by wrong hardness, excessive silicone thickness, poor geometry, insufficient support, or long-term compression stress.

Before tooling, engineers should define the required pressing force, rebound feel, button travel, and expected cycle life.

Waterproof Sealing Around the Button Edge

For waterproof electronic interfaces, the area around the button edge is critical. Even a small gap between the silicone button and housing may allow water, sweat, or dust to enter the internal switch area.

A waterproof overmolded button should be designed with a clear sealing path. Engineers should review the sealing lip height, compression ratio, housing groove, silicone coverage, bonding edge, parting line position, and assembly tolerance.

The sealing function should not rely only on the button surface. It should be supported by the structure under and around the button.

If the sealing lip is too thin, it may collapse or tear. If it is too thick or too hard, it may cause difficult assembly or unstable pressing feel. The sealing design must balance waterproof performance with button movement.

Substrate and Bonding Area Review

LSR overmolded buttons may be molded onto plastic, metal, FPC, or other insert structures. Each substrate has different bonding behavior and process requirements.

For silicone over plastic button parts, engineers should check plastic material, heat resistance, surface energy, bonding compatibility, insert tolerance, and deformation risk.

For silicone over metal button parts, surface cleanliness, oxidation, oil contamination, primer control, and mechanical locking design may affect bonding.

For FPC-related button structures, the design should protect the circuit and switch area while avoiding excessive molding pressure and stress concentration.

The bonding area should be wide enough and supported by the structure. For demanding applications, mechanical retention features such as grooves, holes, undercuts, or wrap-around silicone may help improve long-term stability.

Mold Design and Flash Control

For small overmolded buttons, mold design directly affects appearance, movement, sealing, and assembly.

The mold should control silicone flow, parting line position, venting, insert positioning, and demolding direction. If the mold parting line is placed on the button sealing surface or movement area, flash may affect waterproof performance or pressing feel.

Flash around the button edge may block movement, create friction, affect appearance, or prevent proper sealing. For precision electronic buttons, low-flash molding is especially important.

Engineers should review gate position, venting location, shut-off structure, button edge design, and areas where flash is not allowed before tooling.

Applications of Custom LSR Overmolded Buttons

In automotive electronics, LSR overmolded buttons can be used for control interfaces, sensor modules, connector covers, lighting controls, and waterproof switch areas.

In wearable devices, they can be used for side buttons, touch interface protection, sensor controls, charging interface covers, and skin-contact electronic modules.

In medical devices, silicone overmolded buttons can provide soft touch, sealing, clean appearance, and reliable pressing performance for handheld or compact electronic devices.

In 3C products, they are suitable for small electronic interfaces, waterproof covers, function buttons, remote control parts, and compact device housings.

In industrial control equipment, they can support dustproof, waterproof, anti-vibration, and repeated-use requirements.

Testing Before Mass Production

A custom overmolded button should be tested according to the real product environment before mass production.

Common validation tests include pressing force test, rebound test, cycle life test, waterproof test, air leakage test, dustproof test, dimensional inspection, visual inspection, assembly test, aging test, temperature cycling test, and bonding strength test.

For electronic products, the internal switch function should also be checked before and after repeated pressing, bending, sealing, or aging tests.

Testing helps confirm whether the button can maintain sealing, pressing feel, rebound, bonding, and appearance during long-term use.

How SiliconePlus Supports Custom Overmolded Button Projects

SiliconePlus supports custom LSR overmolding projects involving plastic, metal, FPC, silicone, connector, cable, and electronic interface structures. For custom overmolded button projects, our team can review drawings, samples, substrate materials, button travel, sealing structure, bonding area, silicone hardness, mold design, and testing standards before mold development.

We can support DFM review, silicone material selection, custom tooling, sample production, bonding evaluation, process optimization, inspection, and OEM/ODM mass production.

For automotive control buttons, wearable side buttons, medical electronic buttons, 3C waterproof interfaces, sensor controls, and industrial control panels, early engineering review can help reduce leakage risk, unstable rebound, flash problems, bonding failure, and assembly instability.

Conclusion

Custom LSR overmolded buttons are important for electronic products that require waterproof sealing, dust protection, soft touch, stable rebound, and long-term interface reliability.

A successful button design depends on silicone hardness, button travel, sealing lip structure, bonding area, substrate compatibility, mold precision, flash control, and validation testing.

If you are developing a custom LSR overmolded button or waterproof electronic interface part, send us your drawings, samples, substrate material information, pressing requirements, waterproof requirements, testing standards, and estimated quantity. SiliconePlus can help evaluate the right overmolding solution from prototype to mass production.
