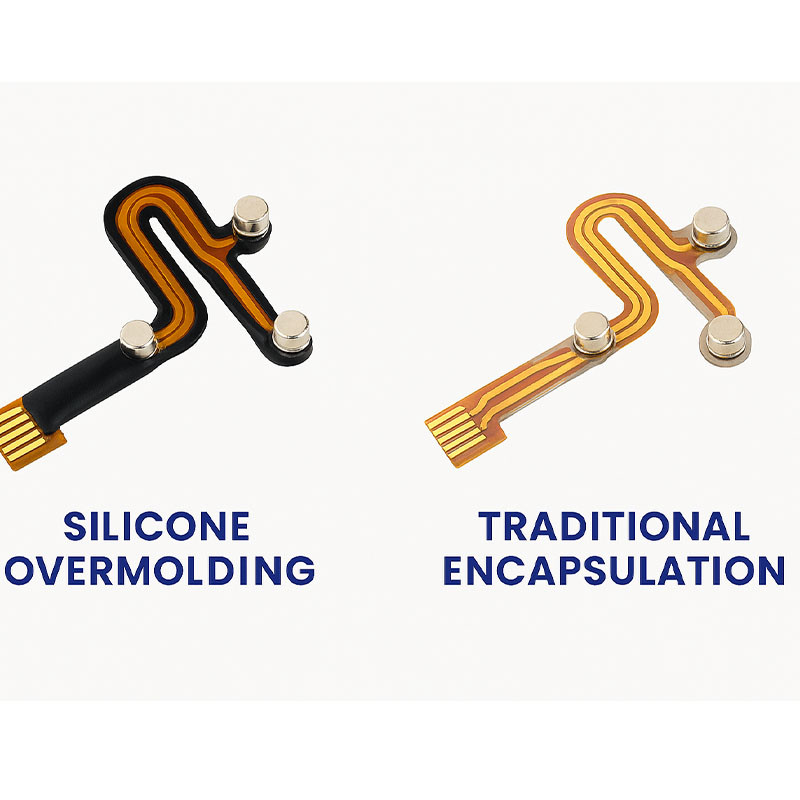

Comparing Silicone Overmolding vs. Traditional Encapsulation for Flexible Printed Circuits (FPCs): An In-Depth Analysis

Introduction

In the rapidly evolving landscape of electronic manufacturing, Flexible Printed Circuits (FPCs) have become a cornerstone technology, enabling compact, lightweight, and highly versatile electronic devices. Ensuring the reliability, durability, and longevity of FPCs is paramount, given their exposure to harsh environments, mechanical stress, and chemical influences.

Two primary methods dominate the encapsulation and protection of FPCs: Silicone Overmolding and Traditional Encapsulation. Each technique offers unique benefits and challenges, making the choice critical for product performance, cost-efficiency, and application-specific requirements.

This comprehensive analysis delves into the technical distinctions, advantages, disadvantages, and application scenarios of both methods. Our goal is to provide clarity and actionable insights to manufacturers, engineers, and product designers seeking optimal protection solutions for FPCs.

Understanding FPC Encapsulation: The Fundamentals

Flexible Printed Circuits (FPCs) are characterized by their thin, lightweight, and flexible substrates, typically made of polyimide or polyester films, with conductive traces. Protecting these delicate structures from environmental factors—such as moisture, dust, chemicals, and mechanical stress—is essential to maintaining device functionality over time.

Encapsulation involves enclosing or covering the FPC with protective materials to shield it from external threats. The two main approaches are:

Silicone Overmolding:

Using liquid silicone rubber to form a protective layer directly over the FPC, often through injection molding.

Traditional Encapsulation:

Employing materials like epoxies, conformal coatings, or potting compounds to cover or fill the FPC enclosure.

Silicone Overmolding for FPCs: An Innovative and Versatile Solution

What is Silicone Overmolding?

Silicone overmolding involves injecting liquid silicone rubber (LSR) directly onto or around the FPC, which then cures to form a flexible, durable, and chemically resistant shell. This method leverages high-precision injection molding techniques to produce encapsulations with intricate geometries and tight tolerances.

Advantages of Silicone Overmolding

Exceptional Flexibility: Silicone rubber's inherent elasticity allows the FPC to bend, twist, and flex without cracking or delaminating.

Superior Chemical Resistance: Silicone provides excellent resistance to moisture, oils, chemicals, and UV exposure, ideal for outdoor and industrial applications.

Thermal Stability: Maintains mechanical and electrical properties over a wide temperature range (-55°C to +250°C).

Excellent Dielectric Properties: Silicone acts as an insulator, protecting against electrical interference and short circuits.

Enhanced Mechanical Shock Absorption: The flexible nature absorbs vibrations and shocks, prolonging device lifespan.

Design Flexibility: Capable of encapsulating complex geometries, connectors, and components with minimal material waste.

Applications of Silicone Overmolding

Industry	Typical Use Cases
Automotive	Sensors, wiring harnesses, engine control modules
Medical Devices	Wearable electronics, implantable sensors
Consumer Electronics	Wearables, flexible displays, portable devices
Industrial Equipment	Robotics, automation sensors

Traditional Encapsulation Techniques for FPCs

What Does Traditional Encapsulation Entail?

Traditional encapsulation methods typically involve conformal coatings, potting compounds, or epoxy resins applied manually or through automated dispensing. These materials are often cured via heat, UV, or chemical processes, creating a protective barrier over the FPC.

Common Traditional Encapsulation Materials

Epoxy Resins: Rigid, high-strength, chemical-resistant; ideal for harsh environments but less flexible.

Conformal Coatings: Thin layers of acrylic, silicone, or polyurethane coatings that conform to the FPC surface.

Potting Compounds: Thicker, often opaque materials used to fill enclosures and provide robust protection.

Advantages of Traditional Encapsulation

Cost-Effective for Mass Production: Well-established processes and materials reduce manufacturing costs.

Good Mechanical Protection: Particularly with epoxy potting, offering resistance to impact and vibration.

Chemical and Moisture Barrier: Effectively prevents ingress of moisture, dust, and chemicals.

Ease of Application: Suitable for simple geometries and straightforward coverage.

Disadvantages of Traditional Encapsulation

Rigidity and Brittleness: Epoxy and certain coatings lack flexibility, risking cracks under mechanical stress.

Limited Thermal Range: Some materials degrade or crack under temperature cycling.

Difficulty in Rework or Repair: Once cured, accessing or repairing internal components is challenging.

Potential for Trapped Air: Improper application can lead to voids, compromising protection.

Application Scenarios for Traditional Encapsulation

Industry	Typical Use Cases
Consumer Electronics	Small gadgets, LED lighting
Medical Devices	Non-flexible sensors, diagnostic equipment
Aerospace	Rigid circuit protection in controlled environments
Industrial Automation	Fixed machinery components

Comparative Analysis: Silicone Overmolding vs. Traditional Encapsulation

Criteria	Silicone Overmolding	Traditional Encapsulation
Flexibility	High – Silicone rubber's elasticity accommodates bending and twisting	Low – Rigid materials prone to cracking under stress
Durability	Excellent – Resists vibration, shocks, and thermal cycling	Variable – Epoxy and rigid coatings may crack or delaminate
Chemical Resistance	Superior – Resists oils, chemicals, UV exposure	Good – Depends on material; often less resistant than silicone
Thermal Range	Wide – -55°C to +250°C	Limited – Usually up to 150°C
Application Complexity	High – Requires precision molding equipment	Moderate – Manual or semi-automated processes
Cost	Higher – Equipment and material costs are greater	Lower – Established, cost-efficient processes
Rework & Repair	Challenging – Difficult once cured	Easier – Some coatings can be reapplied or touched up
Design Flexibility	Excellent – Suitable for complex geometries	Limited – Best for flat or simple shapes

Choosing the Optimal Encapsulation Method for FPCs

Factors to Consider

Application Environment: Exposure to chemicals, moisture, UV, temperature extremes.

Mechanical Stress: Flexing, vibration, impact.

Design Complexity: Need for intricate geometries or embedded components.

Cost Constraints: Budget limitations for manufacturing.

Rework Requirements: Future repairs or modifications.

Longevity and Reliability: Expected lifespan and performance standards.

Decision Matrix

Scenario	Recommended Method	Rationale
Flexible, outdoor, or high-vibration environments	Silicone Overmolding	Flexibility and environmental resistance are critical
Small, simple, cost-sensitive devices	Traditional Epoxy or conformal coating	Cost efficiency and simplicity suffice
Medical devices requiring biocompatibility	Silicone Overmolding	Biocompatible, flexible, and durable
Rigid, high-impact industrial applications	raditional potting with epoxy	Mechanical strength and impact resistance

Future Trends and Innovations in FPC Encapsulation

Hybrid Encapsulation Solutions:

Combining silicone overmolding with traditional coatings for tailored protection.

Advanced Materials:

Development of ultra-flexible, self-healing silicones and environmentally friendly encapsulants.

Automation and Precision Manufacturing:

Enhanced injection molding techniques for complex geometries and mass production.

Miniaturization and High-Density Designs:

Encapsulation methods evolving to accommodate increasingly compact and intricate FPC assemblies.

Conclusion

Silicone overmolding emerges as a superior solution for flexible, durable, and high-performance encapsulation of FPCs, especially in demanding environments where flexibility and chemical resistance are paramount. Its ability to absorb mechanical stresses and withstand extreme temperatures makes it ideal for wearables, automotive sensors, and industrial applications.

Conversely, traditional encapsulation techniques—such as epoxy potting and conformal coatings—remain cost-effective and suitable for less demanding, rigid applications where flexibility is not a priority.

Selecting the appropriate encapsulation method hinges on a comprehensive understanding of application requirements, environmental conditions, and long-term performance goals. By leveraging the strengths of each approach, manufacturers can optimize device reliability, performance, and cost-efficiency.
